Description

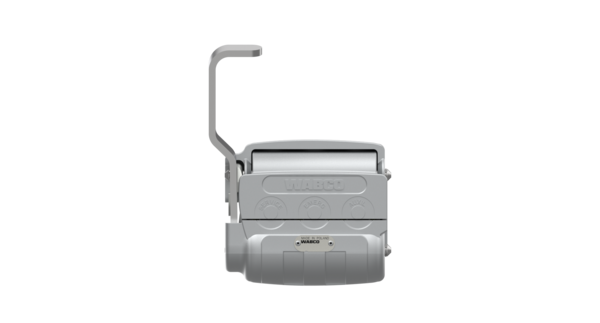

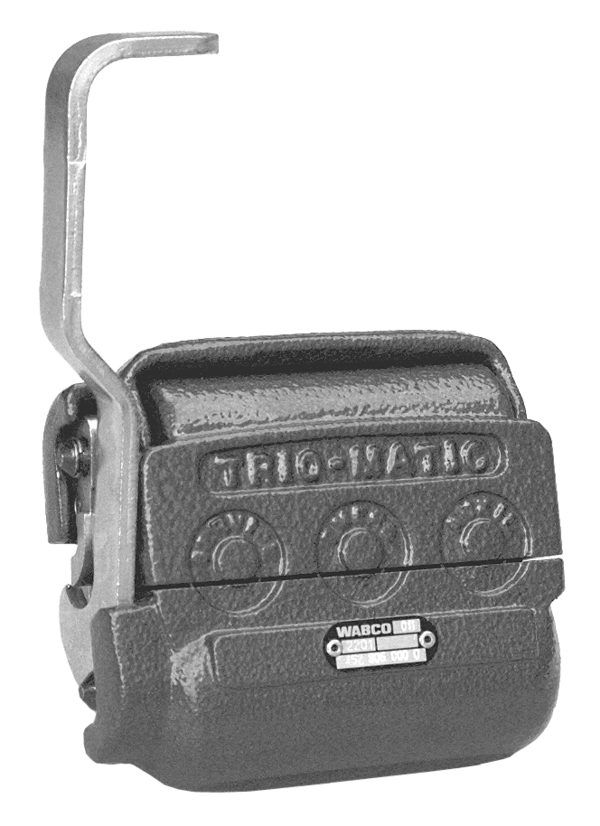

Quick Coupling
Part Number: 4528060000
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Application | Motor vehicle |
| Calculated Volume (dm³) | 1.9958 |
| Comments | Trio-Matic |
| Max. operating pressure | 10.0 bar |
| Port thread 1 | 1/4″ – 18 NPTF |
| Port thread 4 | 1/4″ – 18 NPTF |
| Product category | Device |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| Type | Drawbar |
| Version | With lever |
| GTIN | 04057875207603 |
| Size (mm x mm x mm) | 180 x 126 x 88 |
| UPC | 193133301417 |
| Weight (kg) | 1.36 |
| Weight (lb) | 2.9983 |
OEM Cross References
| Brand | Reference No |
|---|---|
| DAF | 1524566 |
| SCANIA | 1934847 |
