Description

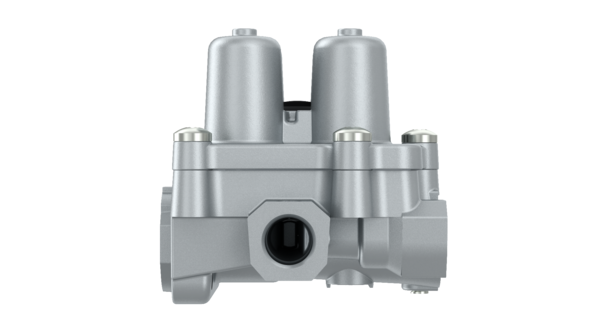

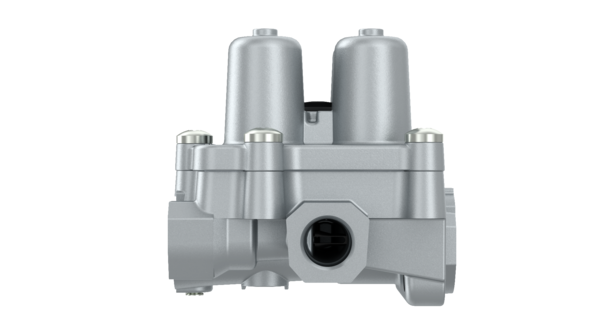

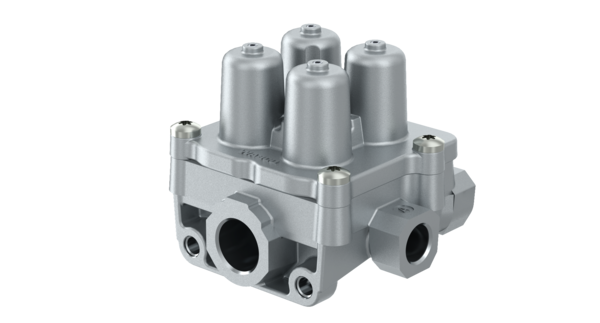

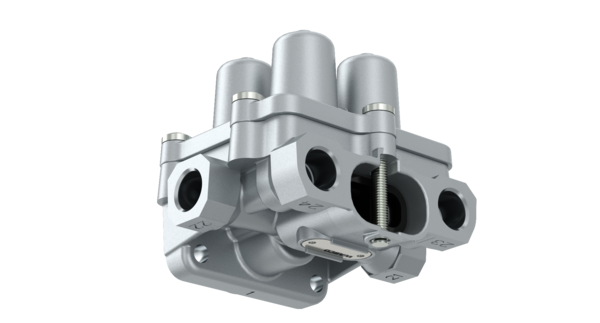

Quadruple Protection Valve
Part Number: 9347141190
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 0.965 |
| Charging pressure | 3.75 bar |
| Closing pressure dynamic 21 | 5.5 bar |
| Closing pressure dynamic 22 | 5.5 bar |
| Closing pressure dynamic 23 | 5.5 bar |
| Closing pressure dynamic 24 | 5.5 bar |
| Max. operating pressure | 13.0 bar |
| Opening pressure circuit 1+2 | 6.7 + 6.5 bar |
| Port thread 1 | M22 x 1.5 |
| Port thread 21 | M16 x 1.5 |
| Port thread 22 | M16 x 1.5 |
| Port thread 23 | M16 x 1.5 |
| Port thread 24 | M16 x 1.5 |
| Port thread 4 | M16 x 1.5 |
| Pressure sensor | No |
| Product category | Device |
| Technical specification | OE specification |
| Temperature range | -45°C to +90°C |
| Type | static |
| GTIN | 7895851052277 |
| Size (mm x mm x mm) | 97 x 113 x 88 |
| UPC | 193133362913 |
| Weight (kg) | 0.694 |
| Weight (lb) | 1.53 |
OEM Cross References
| Brand | Reference No |
|---|---|
| DAF | 1518191 |
| IRISBUS | 98480157 |
| IRISBUS | 99480157 |
| IVECO | 99480157 |
| IVECO | 98480157 |
| IVECO | 9934714119 |
| IVECO | 9347141190 |
| IVECO | 42544391 |
| IVECO | 98400429 |
| IVECO | 98413416 |
| MERCEDES-BENZ | 533531210010 |
| PACCAR | 1518191 |
| SCANIA | 2089985 |
| STEYR | 533531210010 |
