Description

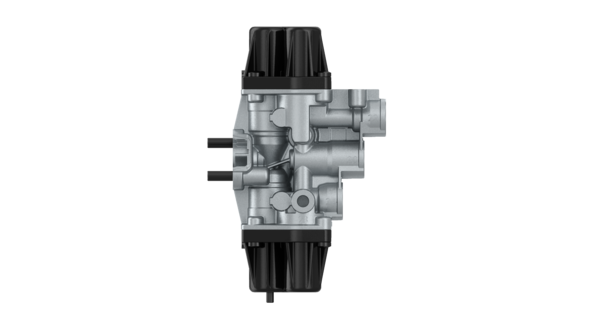

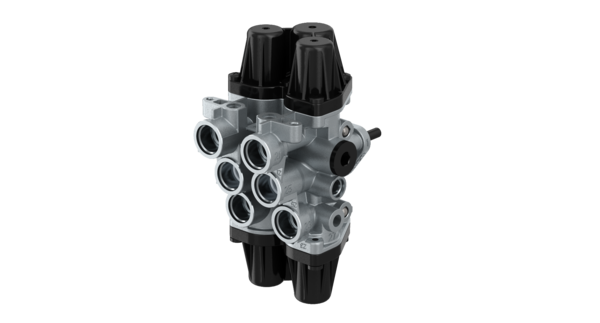

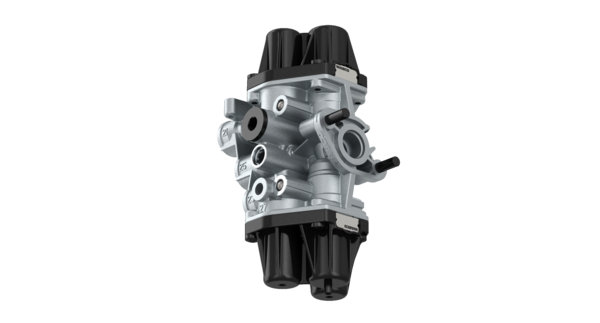

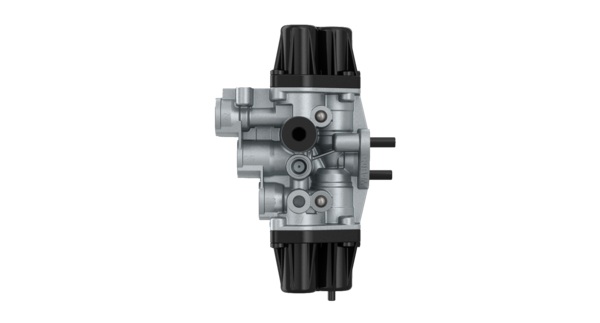

Quadruple Protection Valve
Part Number: 9347050020
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 5.902 |
| Charging pressure | 4.5 bar |
| Closing pressure dynamic 21 | 7.0 bar |
| Closing pressure dynamic 22 | 7.0 bar |
| Closing pressure dynamic 23 | 4.5 bar |
| Closing pressure dynamic 24 | 4.5 bar |
| Max. operating pressure | 13.0 bar |
| Opening pressure 21 | 9 bar |
| Opening pressure 22 | 9 bar |
| Opening pressure 23 | 7.5 bar |
| Opening pressure 24 | 7.5 bar |
| Port thread 1 | M22 x 1.5 |
| Port thread 22 | M22 x 1.5 |
| Port thread 24 | M22 x 1.5 |
| Port thread 26 | M22 x 1.5 |
| Product category | Device |
| Technical specification | OE specification |
| GTIN | 7895851021082 |
| Size (mm x mm x mm) | 297 x 167 x 119 |
| UPC | 193133362340 |
| Weight (kg) | 1.638 |
| Weight (lb) | 3.6112 |
OEM Cross References
| Brand | Reference No |
|---|---|
| EVOBUS | A0034315506 |
| FAUN | 99707005559 |
| FAUN | 7005559 |
| MERCEDES-BENZ | 0034315506 |
| MERCEDES-BENZ | A0034315506 |
