Description

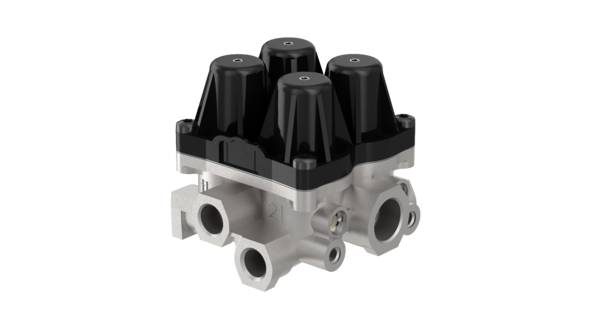

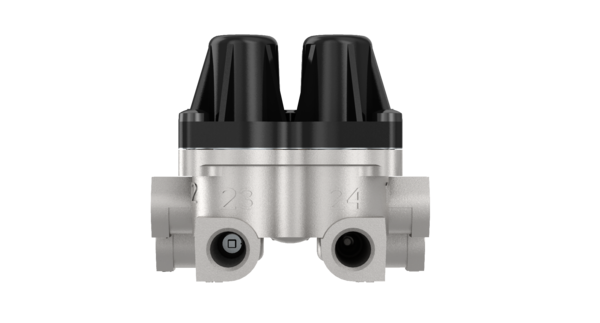

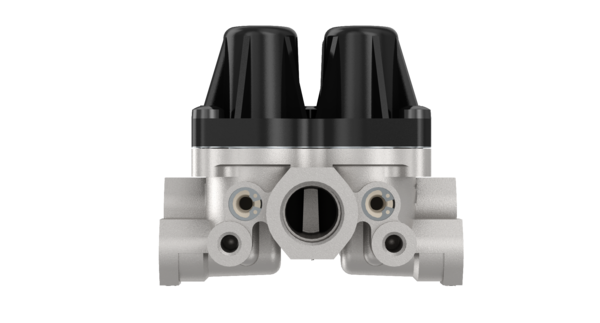

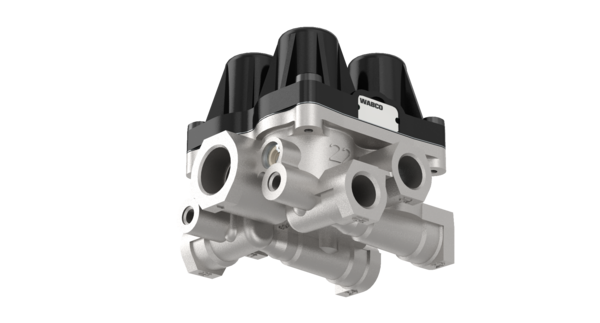

Quadruple Protection Valve
Part Number: 9347147400
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 1.14048 |
| Charging pressure | 3.15 bar |
| Max. operating pressure | 13.0 bar |
| Opening pressure circuit 1+2 | 5.8 + 5.8 bar |
| Port thread 1 | M22 x 1.5 |
| Port thread 11 | M16 x 1.5 |
| Port thread 12 | M16 x 1.5 |
| Port thread 21 | M16 x 1.5 |
| Port thread 22 | M16 x 1.5 |
| Port thread 23 | M16 x 1.5 |
| Port thread 4 | M16 x 1.5 |
| Pressure sensor | No |
| Product category | Device |
| Technical specification | OE specification |
| Temperature range | -45°C to +90°C |
| GTIN | 7895851075184 |
| Size (mm x mm x mm) | 110 x 108 x 96 |
| UPC | 193133362708 |
| Weight (kg) | 0.728 |
| Weight (lb) | 1.605 |
OEM Cross References
| Brand | Reference No |
|---|---|
| DAF | 1528375 |
| PACCAR | 1528375 |
| VOLVO | 21225479 |
| VOLVO | 20755195 |
| VOLVO | 20716313 |
| VOLVO | 20452151 |
| VOLVO | 20382309 |
