Description

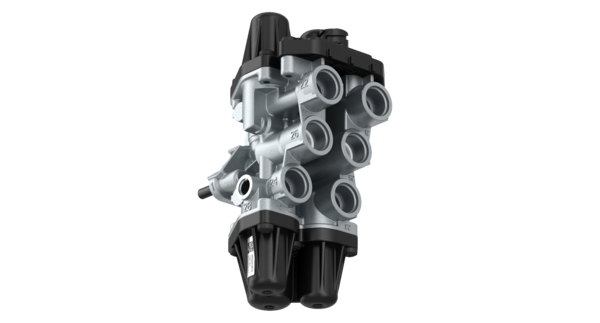

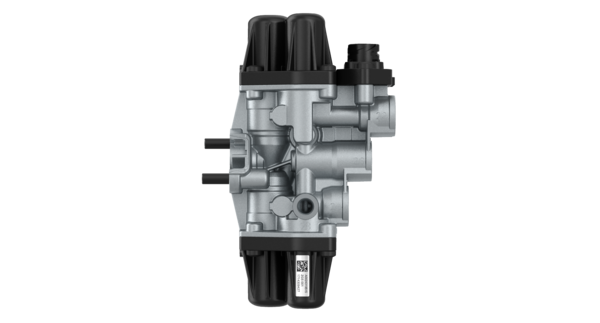

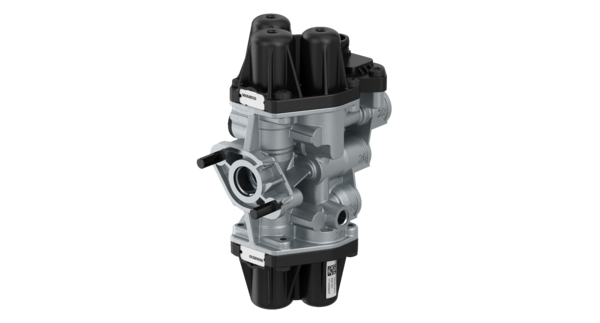

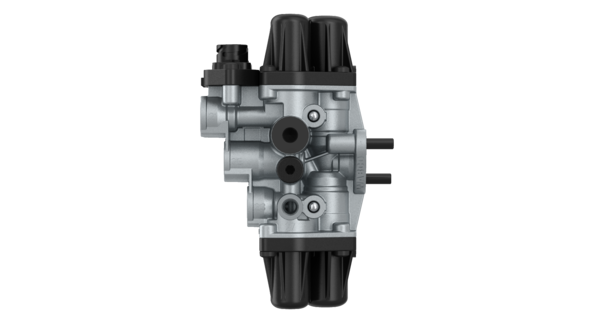

Quadruple Protection Valve
Part Number: 9347050050
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 3.069 |
| Charging pressure | 4.5 bar |
| Closing pressure dynamic 21 | 7.0 bar |
| Closing pressure dynamic 22 | 7.0 bar |
| Closing pressure dynamic 23 | 4.5 bar |
| Closing pressure dynamic 24 | 4.5 bar |
| Electrical connection | DIN 72585 |
| Max. operating pressure | 13.0 bar |
| Opening pressure 21 | 9 bar |
| Opening pressure 22 | 9 bar |
| Opening pressure 23 | 7.5 bar |
| Opening pressure 24 | 7.5 bar |
| Port thread 1 | M22 x 1.5 |
| Port thread 22 | M22 x 1.5 |
| Port thread 24 | M22 x 1.5 |
| Port thread 26 | M22 x 1.5 |
| Product category | Device |
| Technical specification | OE specification |
| GTIN | 7895851065338 |
| Size (mm x mm x mm) | 217 x 136 x 104 |
| UPC | 193133448600 |
| Weight (kg) | 1.621 |
| Weight (lb) | 3.5737 |
OEM Cross References
| Brand | Reference No |
|---|---|
| DAF | 1505128 |
| EVOBUS | A0034315706 |
| KÖGEL | 341420 |
| MAN | ZG046430002 |
| MERCEDES-BENZ | 0034315406 |
| MERCEDES-BENZ | 0034315706 |
| MERCEDES-BENZ | 0034316106 |
| MERCEDES-BENZ | A0034315406 |
| MERCEDES-BENZ | A0034315706 |
| MERCEDES-BENZ | QWAB9347050050 |
| PACCAR | 1505128 |
| SCANIA | 1935509 |
