Description

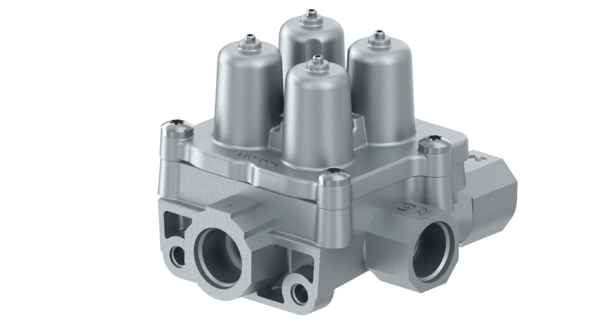

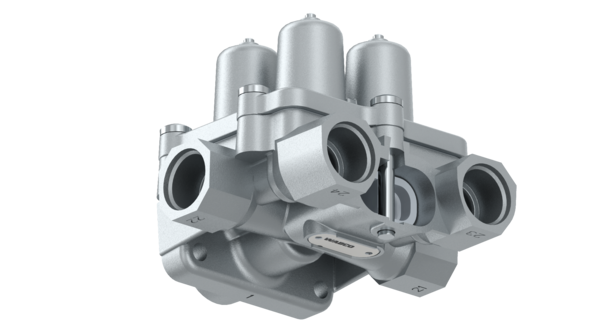

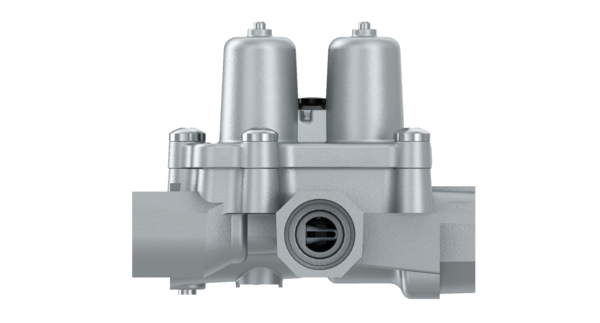

Quadruple Protection Valve
Part Number: 9347144000
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 1.1734 |
| Charging pressure | 3.5 bar |
| Closing pressure dynamic 21 | 5.0 bar |
| Closing pressure dynamic 22 | 5.0 bar |
| Closing pressure dynamic 23 | 5.0 bar |
| Closing pressure dynamic 24 | 5.0 bar |
| Max. operating pressure | 13.0 bar |
| Opening pressure 21 | 6.9 bar |
| Opening pressure 22 | 6.9 bar |
| Opening pressure 23 | 7 bar |
| Opening pressure 24 | 6.9 bar |
| Opening pressure circuit 1+2 | 7.0 + 6.9 bar |
| Port thread 1 | M22 x 1.5 JED-388 |
| Port thread 21 | M22 x 1.5 JED – 388 |
| Port thread 22 | M22 x 1.5 JED – 388 |
| Port thread 23 | M22 x 1.5 JED – 388 |
| Port thread 24 | M22 x 1.5 |
| Port thread 4 | M22 x 1.5 JED – 388 |
| Pressure sensor | No |
| Product category | Device |
| Technical specification | OE specification |
| Temperature range | -40°C to +90°C |
| GTIN | 7895851086302 |
| Size (mm x mm x mm) | 113 x 118 x 88 |
| UPC | 193133363132 |
| Weight (kg) | 0.763 |
| Weight (lb) | 1.6821 |
OEM Cross References
| Brand | Reference No |
|---|---|
| MAN | 81521516098 |
| MAN | 8151516095 |
| NEOPLAN | 81521516098 |
