Description

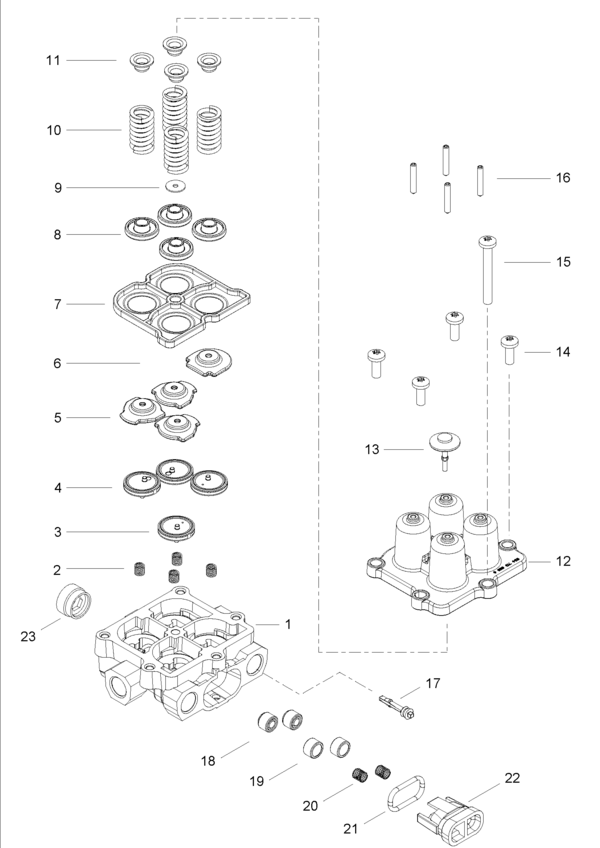

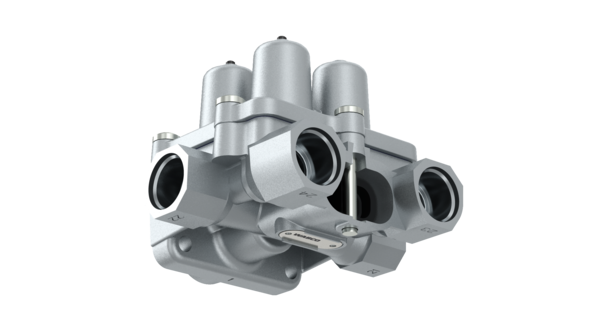

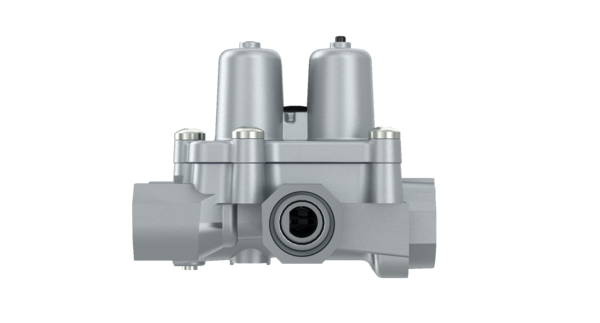

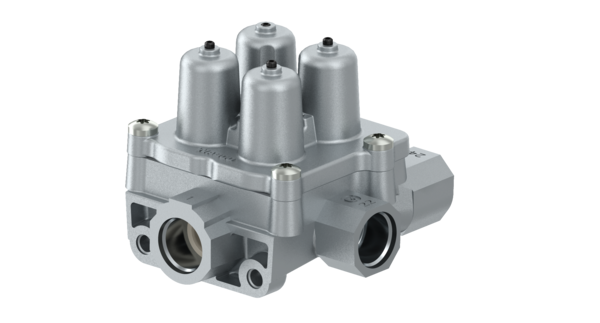

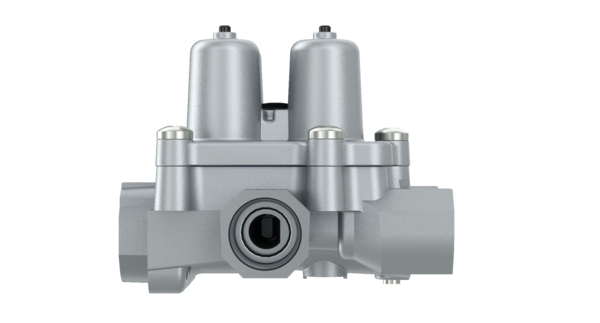

Quadruple Protection Valve
Part Number: 9347144030
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 1.19 |
| Charging pressure | 3.5 bar |
| Closing pressure dynamic 21 | 6.4 bar |
| Closing pressure dynamic 22 | 6.4 bar |
| Closing pressure dynamic 23 | 6.4 bar |
| Closing pressure dynamic 24 | 6.4 bar |
| Max. operating pressure | 13.0 bar |
| Opening pressure 21 | 6.9 bar |
| Opening pressure 22 | 6.9 bar |
| Opening pressure 23 | 7 bar |
| Opening pressure 24 | 6.9 bar |
| Opening pressure circuit 1+2 | 7.0 + 6.9 bar |
| Port thread 1 | M22 x 1.5 JED-388 |
| Port thread 21 | M22 x 1.5 JED – 388 |
| Port thread 22 | M22 x 1.5 JED – 388 |
| Port thread 23 | M22 x 1.5 JED – 388 |
| Port thread 24 | M22 x 1.5 |
| Port thread 4 | M22 x 1.5 JED – 388 |
| Pressure sensor | No |
| Product category | Device |
| Technical specification | OE specification |
| Temperature range | -40°C to +90°C |
| GTIN | 04057875290889 |
| Size (mm x mm x mm) | 119 x 111.6 x 100 |
| UPC | 193133362975 |
| Weight (kg) | 0.765 |
| Weight (lb) | 1.687 |
OEM Cross References
| Brand | Reference No |
|---|---|
| BEIBEN | 5204310306 |
| C&C TRUCKS | 100353400016AB0A |
| FOTON | 1525835685010 |
| FOTON | 1612135600003 |
| FOTON | L0356502003A0 |
| JAC | 59480-Y43G6 |
| KING LONG | 235500350 |
| SHAANXI | 81521516094 |
| SINOTRUK (CNHTC) | WG9000360523/1 |
| SINOTRUK (CNHTC) | WG90003605232 |
| SINOTRUK (CNHTC) | AZ87353400100 |
| SINOTRUK (CNHTC) | WG9000360523/2 |
| SUNWIN | SWB563050138 |
