Description

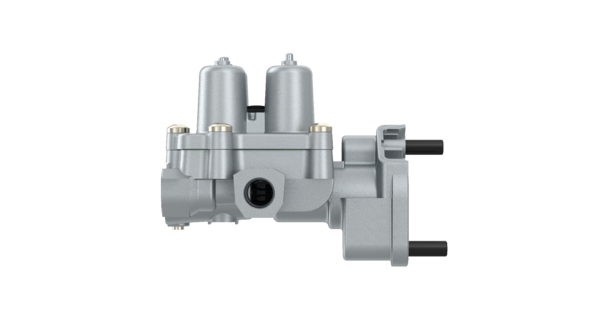

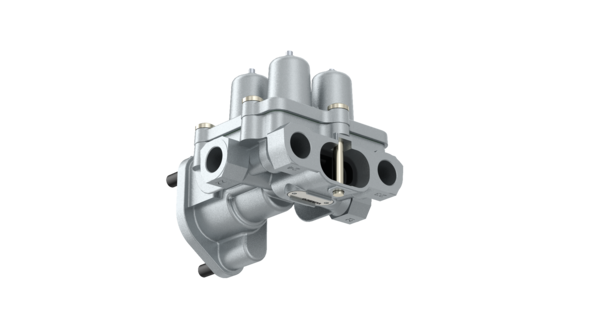

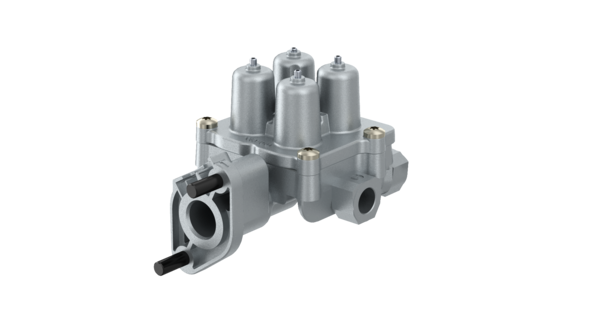

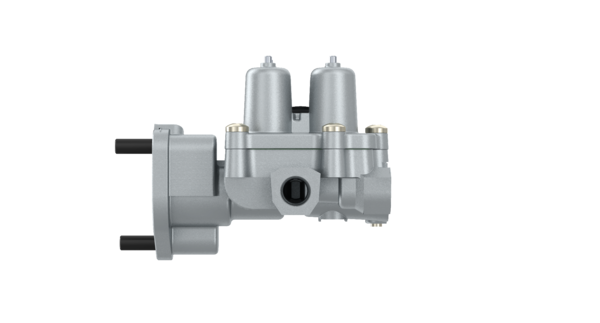

Quadruple Protection Valve
Part Number: 9347141520
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 1.694 |
| Charging pressure | 3.5 bar |
| Closing pressure dynamic 21 | 5.5 bar |
| Closing pressure dynamic 22 | 5.5 bar |
| Closing pressure dynamic 23 | 5.5 bar |
| Closing pressure dynamic 24 | 5.5 bar |
| Max. operating pressure | 13.0 bar |
| Opening pressure 21 | 6 bar |
| Opening pressure 22 | 6 bar |
| Opening pressure 23 | 7 bar |
| Opening pressure 24 | 6 bar |
| Port thread 1 | M8 x 1.25 |
| Port thread 21 | M16 x 1.5 |
| Port thread 22 | M16 x 1.5 |
| Port thread 23 | M16 x 1.5 |
| Port thread 24 | M16 x 1.5 |
| Product category | Device |
| Technical specification | OE specification |
| GTIN | 04057875290797 |
| Size (mm x mm x mm) | 140 x 110 x 110 |
| UPC | 193133362654 |
| Weight (kg) | 0.76 |
| Weight (lb) | 1.6755 |
OEM Cross References
| Brand | Reference No |
|---|---|
| HYUNDAI | 59480 8C500 |
| HYUNDAI | 59480 8C501 |
| KIA | AC99D43472 |
