Description

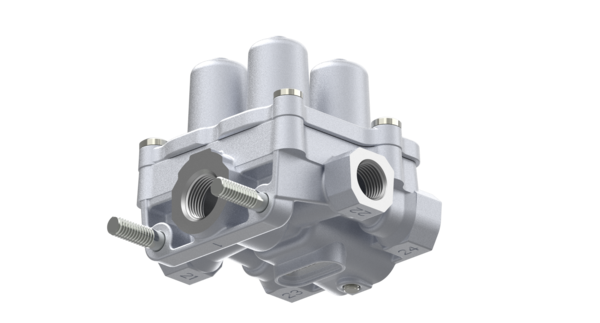

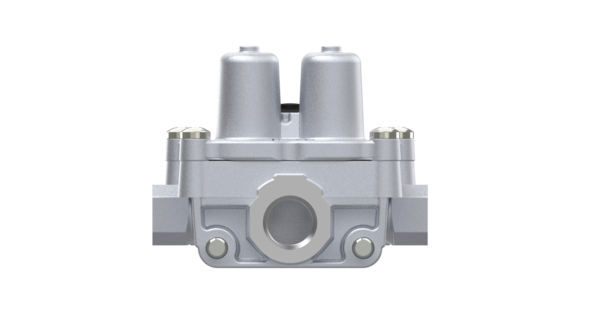

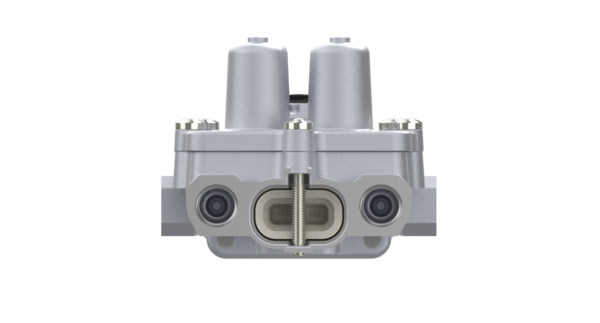

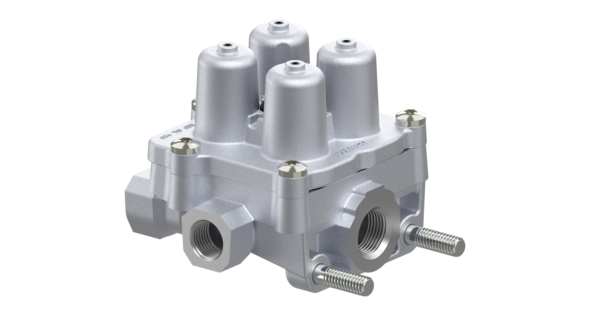

Quadruple Protection Valve
Part Number: 9347140110
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 0.93632 |
| Charging pressure | 3.85 bar |
| Max. operating pressure | 13.0 bar |
| Opening pressure 21 | 7.2 bar |
| Opening pressure 22 | 7.2 bar |
| Opening pressure 23 | 7.7 bar |
| Opening pressure 24 | 7.3 bar |
| Opening pressure circuit 1+2 | 7.7 + 7.3 bar |
| Port thread 1 | M22 x 1.5 |
| Port thread 21 | M16 x 1.5 |
| Port thread 22 | M16 x 1.5 |
| Port thread 23 | M16 x 1.5 |
| Port thread 24 | M16 x 1.5 |
| Port thread 4 | M16 x 1.5 |
| Pressure sensor | No |
| Product category | Device |
| Technical specification | OE specification |
| Temperature range | -40°C to +90°C |
| GTIN | 7895851054134 |
| Size (mm x mm x mm) | 112 x 95 x 88 |
| UPC | 193133362371 |
| Weight (kg) | 0.678 |
| Weight (lb) | 1.4947 |
OEM Cross References
| Brand | Reference No |
|---|---|
| LEYLAND DAF | ACHA001 |
| PACCAR | ACHA001 |
