Description

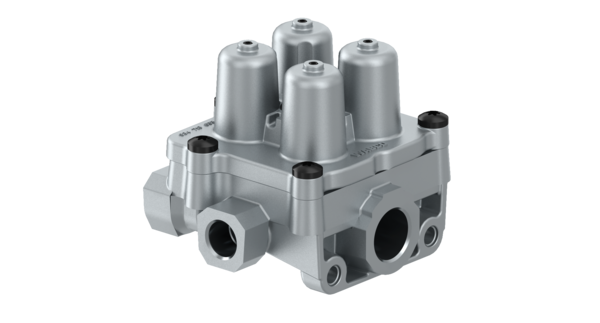

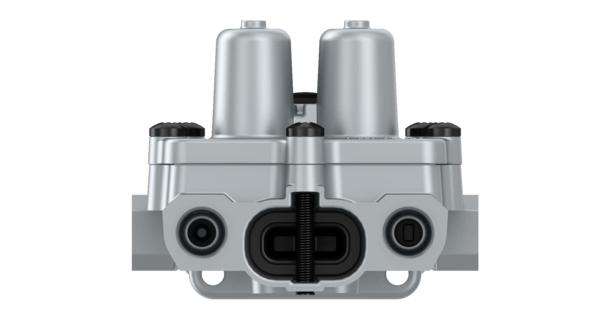

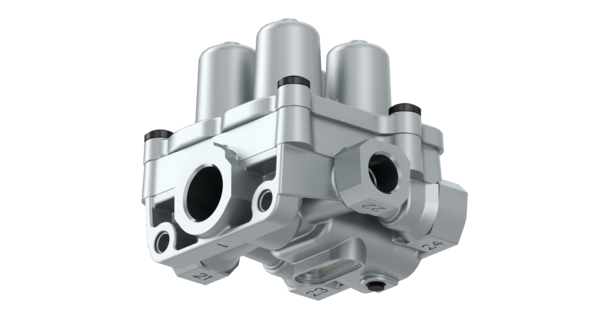

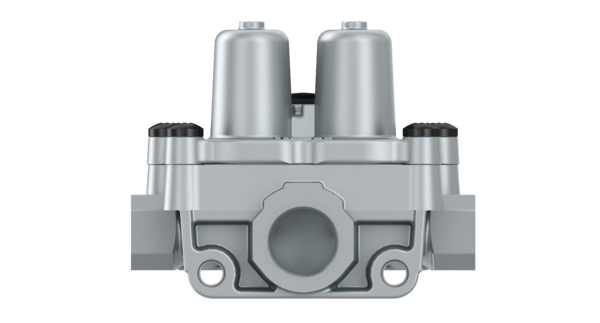

Quadruple Protection Valve
Part Number: 9347141230
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 0.863 |
| Charging pressure | 3.6 bar |
| Closing pressure dynamic 21 | 5.0 bar |
| Closing pressure dynamic 22 | 5.0 bar |
| Closing pressure dynamic 23 | 5.0 bar |
| Closing pressure dynamic 24 | 5.0 bar |
| Max. operating pressure | 13.0 bar |
| Opening pressure 21 | 6.9 bar |
| Opening pressure 22 | 6.9 bar |
| Opening pressure 23 | 7.2 bar |
| Opening pressure 24 | 7.2 bar |
| Opening pressure circuit 1+2 | 8.5 + 8.0 bar |
| Port thread 1 | M22 x 1.5 |
| Port thread 21 | M16 x 1.5 |
| Port thread 22 | M16 x 1.5 |
| Port thread 23 | M16 x 1.5 |
| Port thread 24 | M16 x 1.5 |
| Port thread 4 | M16 x 1.5 |
| Pressure sensor | No |
| Product category | Device |
| Technical specification | OE specification |
| Temperature range | -40°C to +90°C |
| Type | dynamic |
| GTIN | 04057875290674 |
| Size (mm x mm x mm) | 109 x 90 x 88 |
| UPC | 193133362951 |
| Weight (kg) | 0.686 |
| Weight (lb) | 1.5124 |
OEM Cross References
| Brand | Reference No |
|---|---|
| AGCO | G931882020010 |
| BYD | 109 254 330 0 |
| CAMC | 3515ADY-010 |
| DAF | 1518192 |
| DONGFENG (DFM) | 9347141230 |
| KING LONG | 35CR315010 |
| KING LONG | 235500063 |
| LEYLAND DAF | ACHE908 |
| VDL | 20240887 |
| VDL | 240887 |
| YUTONG | 3515-00042A |
| YUTONG | 3515-00042 |
| ZHONGTONG | 3553-10-00002 |
