Description

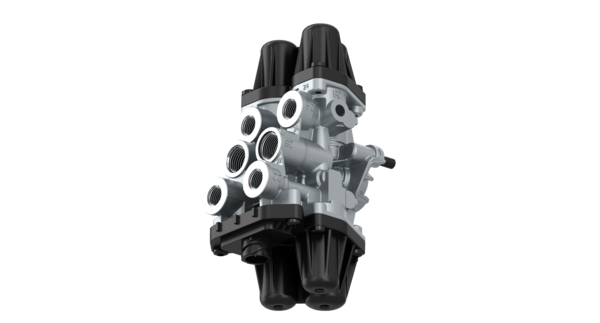

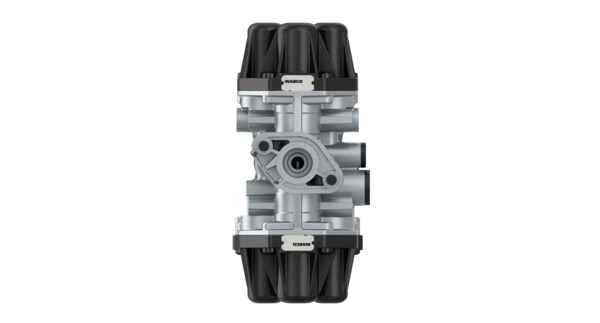

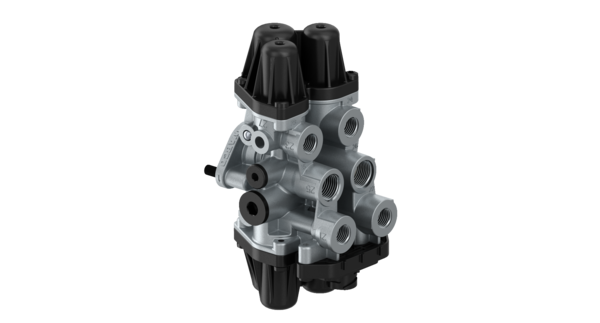

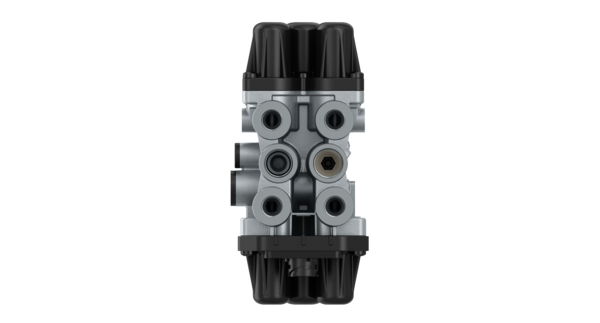

Quadruple Circuit Protection Valve
Part Number: 9347050210
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 0 |
| Charging pressure | 3.75 bar |
| Closing pressure static 21 | 6.5 bar |
| Closing pressure static 22 | 6.5 bar |
| Closing pressure static 23 | 3.8 bar |
| Closing pressure static 24 | 5.9 bar |
| Electrical connection | DIN 72585 |
| Max. operating pressure | 13.0 bar |
| Opening pressure 21 | 7.5 bar |
| Opening pressure 22 | 7.5 bar |
| Opening pressure 23 | 5.35 + 7.5 bar |
| Opening pressure 24 | 7.5 bar |
| Port thread 1 | M22 x 1.5 |
| Port thread 21 | M16 x 1.5 |
| Port thread 22 | M16 x 1.5 |
| Port thread 23 | M16 x 1.5 |
| Port thread 24 | M16 x 1.5 |
| Port thread 26 | M22 x 1.5 |
| Product category | Device |
| Technical specification | OE specification |
| GTIN | 7895851076617 |
| UPC | 193133362593 |
| Weight (kg) | 1.591 |
| Weight (lb) | 3.5076 |
OEM Cross References
| Brand | Reference No |
|---|---|
| IVECO | 500056401 |
