Description

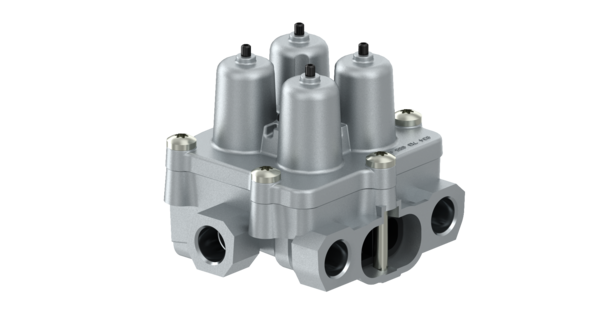

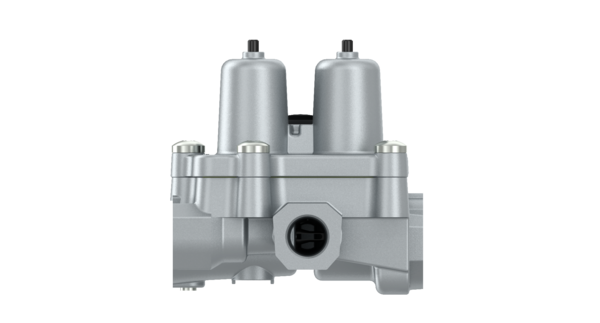

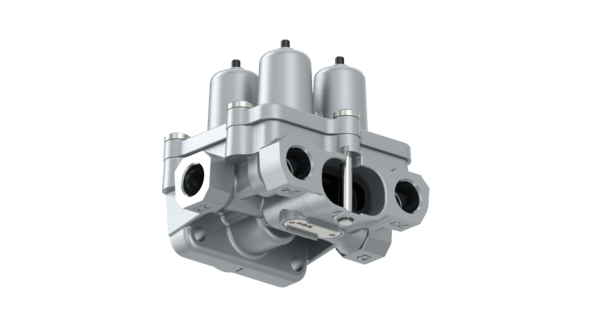

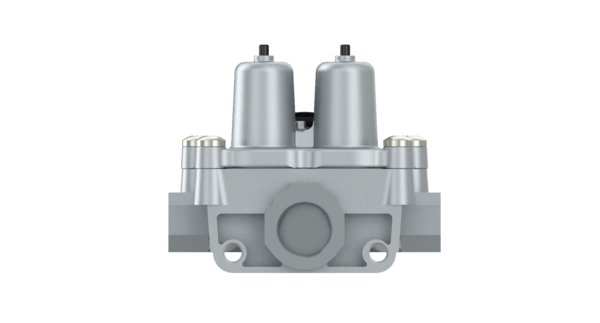

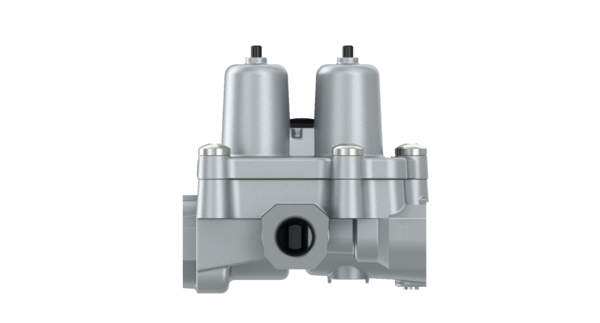

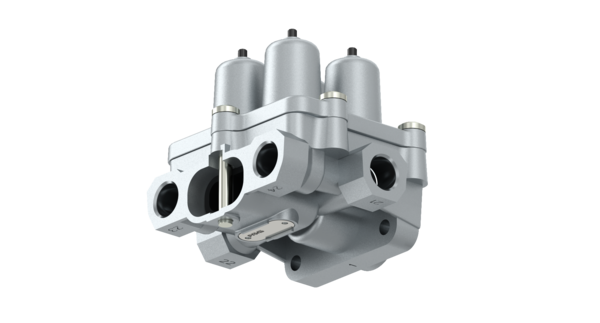

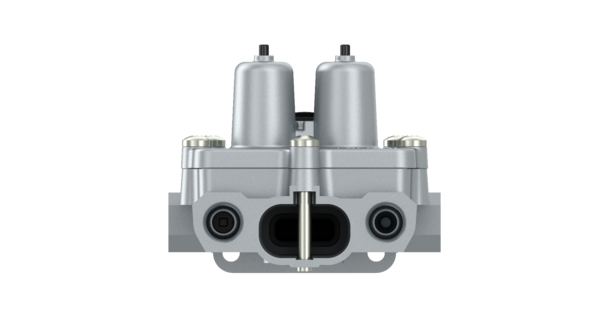

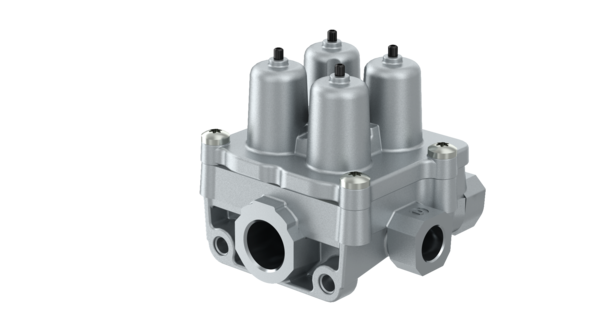

Quadruple Circuit Protection Valve
Part Number: PRO1220020
Technical Specifications
| Brand | ProVia |
| Part type | Reliable spare parts |
| Calculated Volume (dm³) | 0.8718 |
| Charging pressure | 3.6 bar |
| Closing pressure dynamic 21 | 4.5 bar |
| Closing pressure dynamic 22 | 4.5 bar |
| Closing pressure dynamic 23 | 4.5 bar |
| Closing pressure dynamic 24 | 4.5 bar |
| Max. operating pressure | 13.0 bar |
| Opening pressure 21 | 6.5 +0/-0.3 bar |
| Opening pressure 22 | 6.5 +0/-0.3 bar |
| Opening pressure 23 | 7.2 +0/-0.3 bar |
| Opening pressure 24 | 6.5 bar |
| Port thread 1 | M22 x 1.5 |
| Port thread 21 | M16 x 1.5 |
| Port thread 22 | M16 x 1.5 |
| Port thread 23 | M16 x 1.5 |
| Port thread 24 | M16 x 1.5 |
| Ports | 1: M22 x 1.5; 21, 22, 23, 24: M16 × 1.5 |
| ProVia warranty | 1 year |
| Product category | Device |
| Technical specification | AM specification |
| GTIN | 04057877006082 |
| Size (mm x mm x mm) | 109 x 86 x 93 |
| UPC | 193134004959 |
| Weight (kg) | 0.687 |
| Weight (lb) | 1.515 |
OEM Cross References
| Brand | Reference No |
|---|---|
| PACCAR | 1527726 |
| VOLVO | 20.382.310 |
| VOLVO | 20.452.152 |
| VOLVO | 21.811.707 |
| VOLVO | 20382310 |
| VOLVO | 20452152 |
| VOLVO | 21811707 |
| VOLVO | 218117 |
