Description

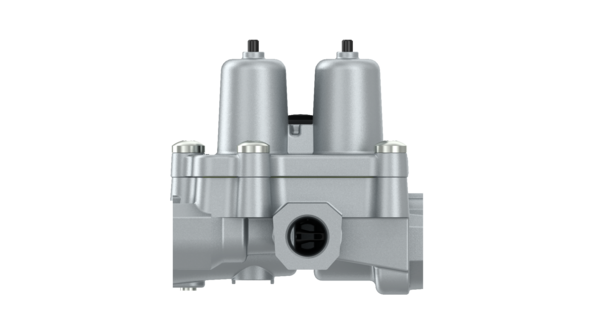

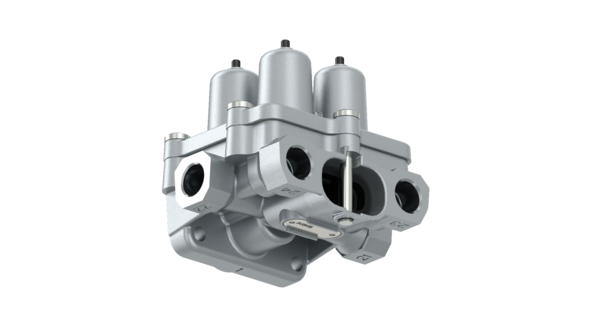

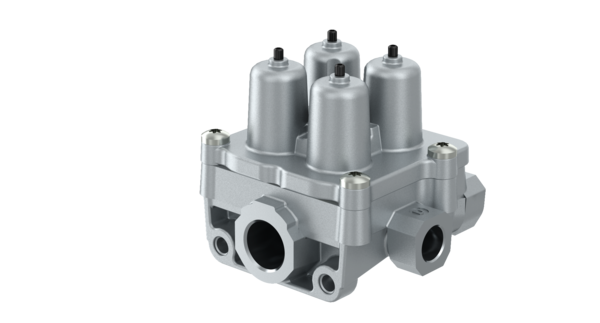

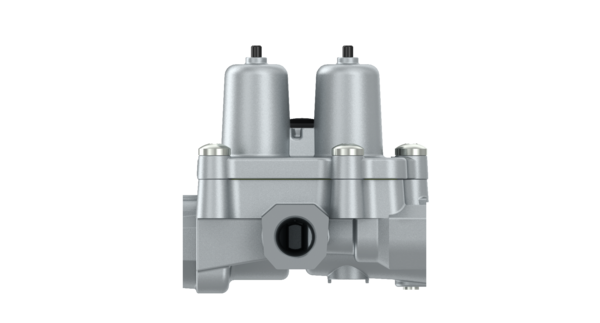

Quadruple Circuit Protection Valve
Part Number: PRO1220010
Technical Specifications
| Brand | ProVia |
| Part type | Reliable spare parts |
| Calculated Volume (dm³) | 2.266 |
| Charging pressure | 3.5 bar |
| Closing pressure dynamic 21 | 5.0 bar |
| Closing pressure dynamic 22 | 5.0 bar |
| Closing pressure dynamic 23 | 5.0 bar |
| Closing pressure dynamic 24 | 5.0 bar |
| Max. operating pressure | 13.0 bar |
| Opening pressure 21 | 6.9 +0/-0.3 bar |
| Opening pressure 22 | 6.9 +0/-0.3 bar |
| Opening pressure 23 | 7.0 +0/-0.3 bar |
| Opening pressure 24 | 6.9 bar |
| Port thread 1 | M22 x 1.5 |
| Port thread 21 | M22 x 1.5 |
| Port thread 22 | M22 x 1.5 |
| Port thread 23 | M22 x 1.5 |
| Port thread 24 | M22 x 1.5 |
| Ports | 1, 21, 22, 23, 24: M22 x 1.5 VOSS |
| ProVia warranty | 1 year |
| Product category | Device |
| Technical specification | AM specification |
| GTIN | 04057877006075 |
| Size (mm x mm x mm) | 125 x 125 x 145 |
| UPC | 193134004911 |
| Weight (kg) | 0.845 |
| Weight (lb) | 1.863 |
OEM Cross References
| Brand | Reference No |
|---|---|
| MAN | 81.521.516.098 |
| MAN | 64521516001 |
| MAN | 81521516095 |
| MAN | 81521516098 |
| MAN | 81521516099 |
| MAN | 81521516105 |
| MAN | 81521516106 |
| NEOPLAN | 81.521.516.098 |
| NEOPLAN | 81521516098 |
