Description

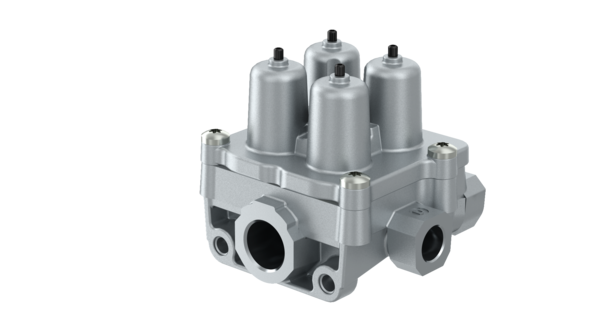

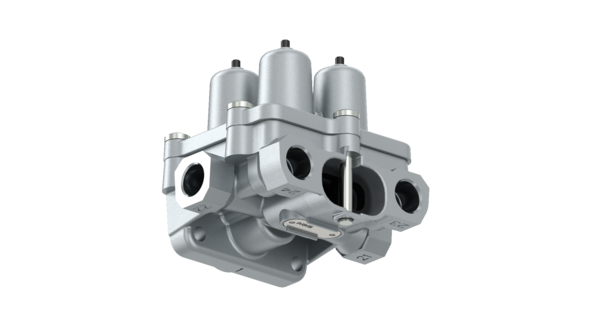

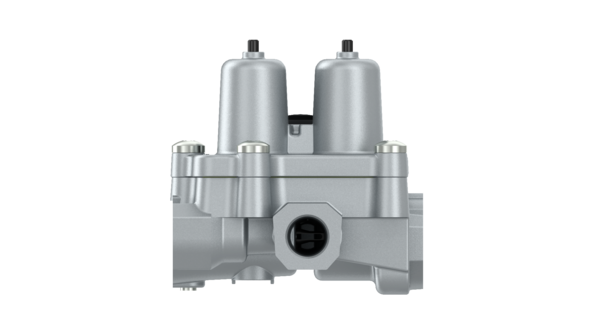

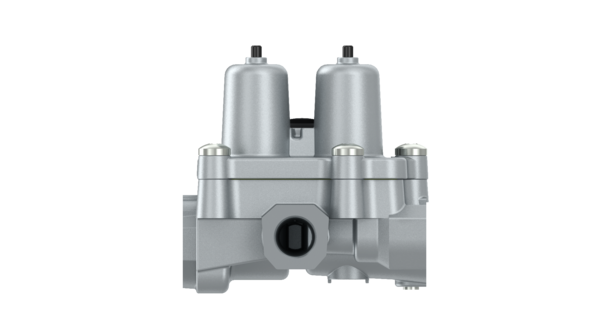

Quadruple Circuit Protection Valve
Part Number: PRO1220030
Technical Specifications
| Brand | ProVia |
| Part type | Reliable spare parts |
| Calculated Volume (dm³) | 2.266 |
| Charging pressure | 3.7 bar |
| Closing pressure dynamic 21 | 4.5 bar |
| Closing pressure dynamic 22 | 4.5 bar |
| Closing pressure dynamic 23 | 4.5 bar |
| Closing pressure dynamic 24 | 4.5 bar |
| Max. operating pressure | 13.0 bar |
| Opening pressure 21 | 6.5 +0/-0.3 bar |
| Opening pressure 22 | 6.5 +0/-0.3 bar |
| Opening pressure 23 | 7.4 +0/-0.3 bar |
| Opening pressure 24 | 6.5 bar |
| Port thread 1 | M22 x 1.5 |
| Port thread 21 | M16 x 1.5 |
| Port thread 22 | M16 x 1.5 |
| Port thread 23 | M16 x 1.5 |
| Port thread 24 | M16 x 1.5 |
| Ports | 1: M22 x 1.5; 21, 22, 23, 24: M16 × 1.5 |
| ProVia warranty | 1 year |
| Product category | Device |
| Technical specification | AM specification |
| GTIN | 04057877006099 |
| Size (mm x mm x mm) | 125 x 125 x 145 |
| UPC | 193134004935 |
| Weight (kg) | 0.768 |
| Weight (lb) | 1.693 |
OEM Cross References
| Brand | Reference No |
|---|---|
| ALEXANDER DENNIS | AB9347142110 |
| DAF | 1505406 |
| MAN | ZG046460002 |
| PACCAR | 1.505.406 |
| PACCAR | 1505406 |
| SCANIA | 1.431.049 |
| SCANIA | 1.935.516 |
| SCANIA | 1381883 |
| SCANIA | 1431049 |
| SCANIA | 1935516 |
| VAN HOOL | 10.740.689 |
| VAN HOOL | 10740689 |
| VDL | 28.210.202.900 |
| VDL | 28210202900 |
| VOLVO | 1.431.049 |
