Description

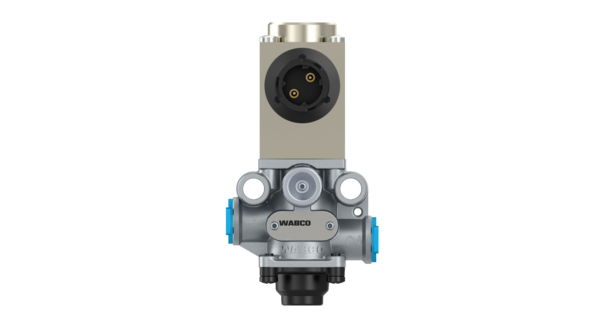

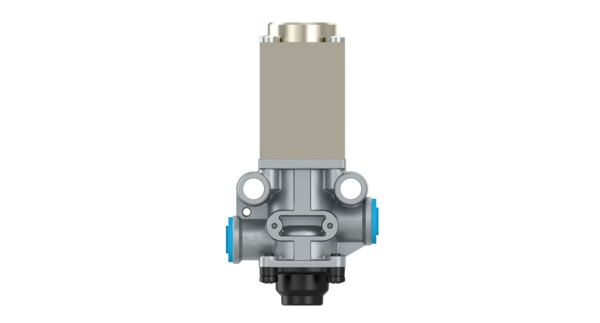

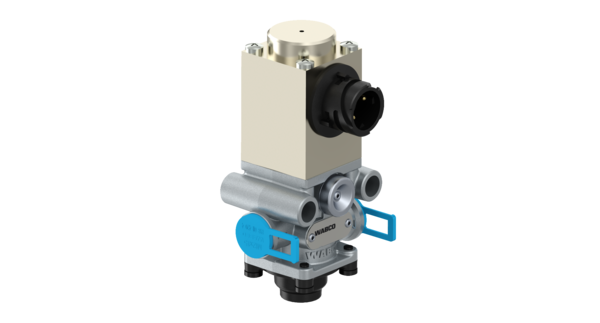

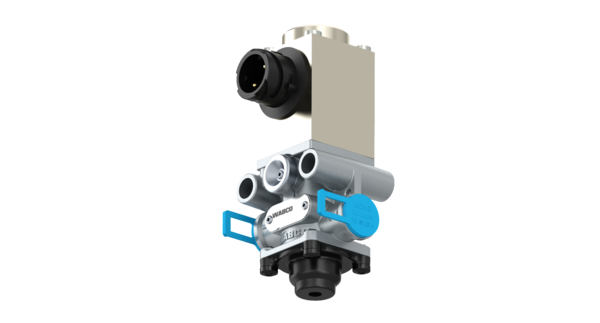

Proportional valve
Part Number: 4722500070
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 0.48044 |
| Distance between holes | 42 mm |
| Electrical connection | Bayonet |
| Max. operating pressure | 11.2 bar |
| Mounting | 2x Ø 9.0 mm |
| Multi nominal diameter (from port 1 to x) | 4.0 / 2.5 mm |
| Nominal diameter | 4.0 mm |
| Port thread 1 | M12 x 1.5 |
| Port thread 2 | M12 x 1.5 |
| Port threads | M12 x 1.5 |
| Product category | Device |
| Rated current | 570 mA |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| Type | Proportional valve |
| Voltage | 24 V |
| GTIN | 04057875219514 |
| Size (mm x mm x mm) | 123 x 62 x 63 |
| UPC | 193133465140 |
| Weight (kg) | 0.617 |
| Weight (lb) | 1.3603 |
OEM Cross References
| Brand | Reference No |
|---|---|
| DAF | 1506177 |
| EVOBUS | A0021406160 |
| FAYMONVILLE | 201806 |
| FORD | YC442C229AA |
| IRISBUS | 41030395 |
| IVECO | 41030395 |
| MERCEDES-BENZ | A0021406160 |
| SCANIA | 1934982 |
| VDL | 20235252 |
| VDL | 235252 |
