Description

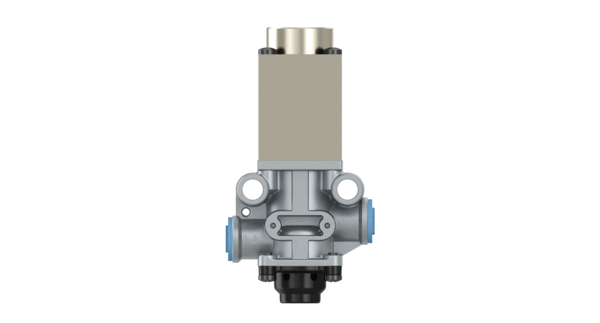

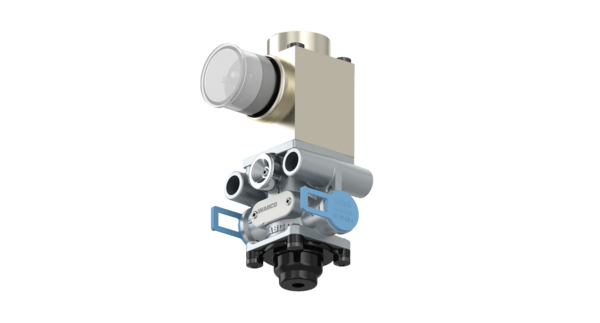

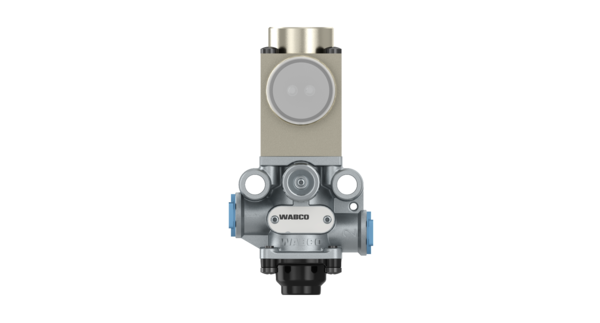

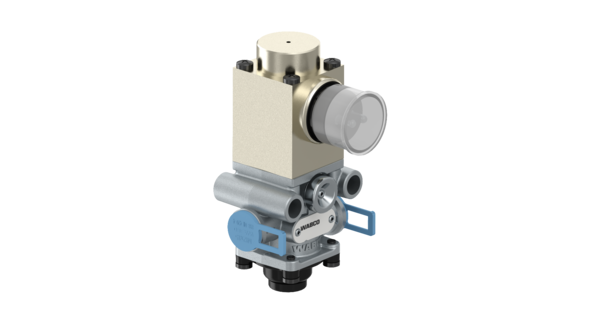

Proportional valve
Part Number: 4722500000
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 0.487 |
| Distance between holes | 42 mm |
| Electrical connection | M 27×1 |
| Max. operating pressure | 10.0 bar |
| Mounting | 2x Ø 9.0 mm |
| Multi nominal diameter (from port 1 to x) | 4.0 / 2.5 mm |
| Nominal diameter | 4.0 mm |
| Port thread 1 | M12 x 1.5 |
| Port thread 2 | M12 x 1.5 |
| Port threads | M12 x 1.5 |
| Product category | Device |
| Rated current | 570 mA |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| Type | Proportional valve |
| Voltage | 24 V |
| GTIN | 7895851007376 |
| Size (mm x mm x mm) | 61 x 121 x 66 |
| UPC | 193133443551 |
| Weight (kg) | 0.644 |
| Weight (lb) | 1.4198 |
OEM Cross References
| Brand | Reference No |
|---|---|
| ALEXANDER DENNIS | 655586 |
| ALEXANDER DENNIS | 6538773 |
| DAF | 1505432 |
| ERF | 1170242 |
| EVOBUS | A6644297082 |
| IRISBUS | 500005186 |
| IRISBUS | 4460001016 |
| IVECO | 98465149 |
| IVECO | 500005186 |
| IVECO | 4460001016 |
| IVECO | E4460001016 |
| KENWORTH | S472-250-000-0 |
| LEYLAND DAF | 125736 |
| LEYLAND DAF | 1257361 |
| MAFI | 0005516042 |
| MAN | 79100580415 |
| MAN | N2509990040 |
| MAN | 1170242 |
| MERCEDES-BENZ | 6644297082 |
| MERCEDES-BENZ | A6644297082 |
| MERITOR | S4722500000 |
| PACCAR | 1505432 |
| PETERBILT | S472-250-000-0 |
| RENAULT | 5010135774 |
| SCANIA | 1335961 |
| SCANIA | 1934980 |
| STEYR | 79100580415 |
| UD TRUCKS | 4760000Z08. |
| VDL | 20219125 |
| VDL | 219125 |
| VOLVO | 3127660 |
| VOLVO | 8133302 |
