Description

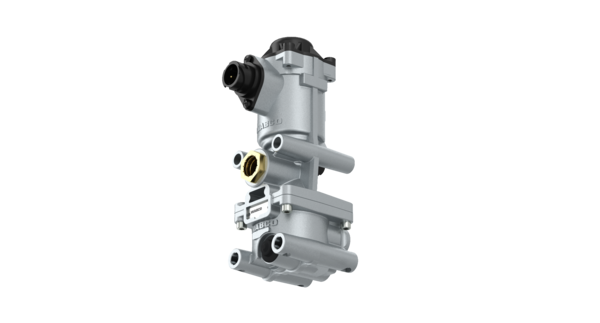

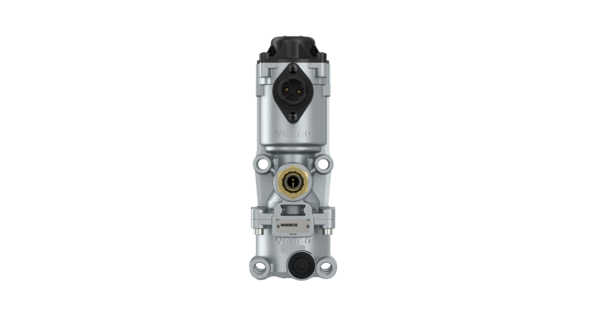

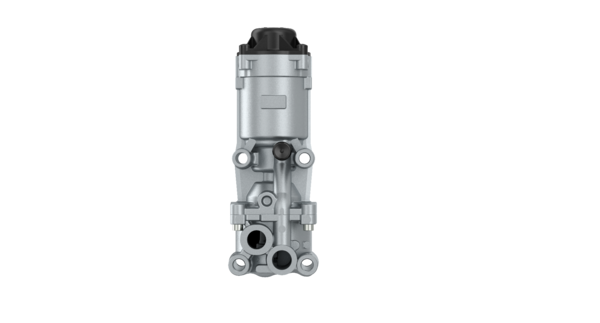

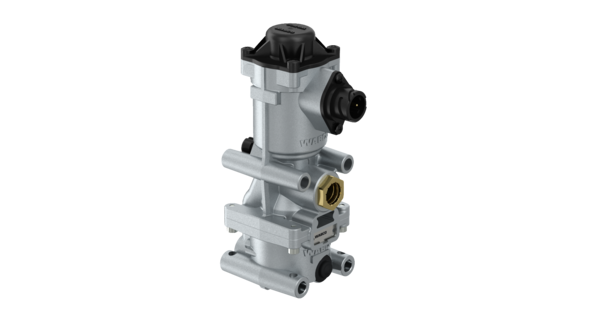

Proportional valve
Part Number: 4722600110
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 1.6126 |
| Distance between holes | 54×84.5 mm |
| Electrical connection | Bayonet DIN 72585 B1-2.1-1-Sn/K1 |
| Max. operating pressure | 12.0 bar |
| Mounting | 4x Ø 8.5 |
| Nominal diameter | 8.0 mm |
| Port thread 1 | M22 x 1.5 JED-152 |
| Port thread 2 | Ø 15 mm |
| Port thread 31 | Flap Exhaust |
| Port thread 32 | Ø 15 mm |
| Product category | Device |
| Protection class | IP 67, IP 6K9K |
| Technical specification | OE specification |
| Temperature range | -20°C to +110°C |
| Voltage | 24 V |
| GTIN | 7895851078444 |
| Size (mm x mm x mm) | 201 x 113 x 71 |
| UPC | 193133443568 |
| Weight (kg) | 1.596 |
| Weight (lb) | 3.5186 |
OEM Cross References
| Brand | Reference No |
|---|---|
| VOITH | 67109123 |
| VOITH | 15300055910 |
