Description

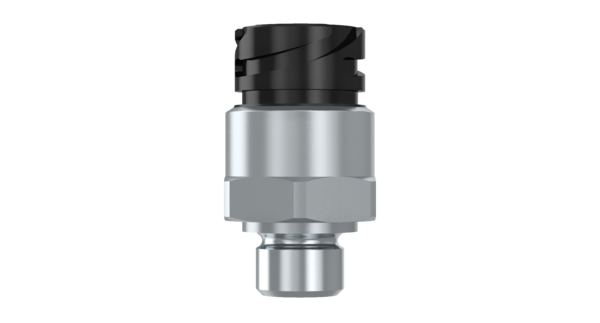

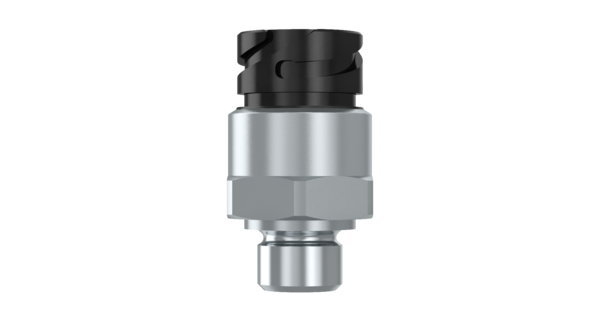

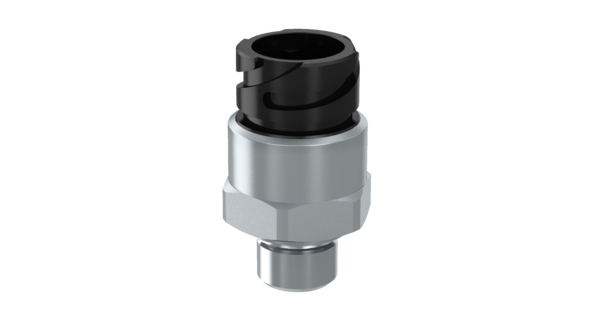

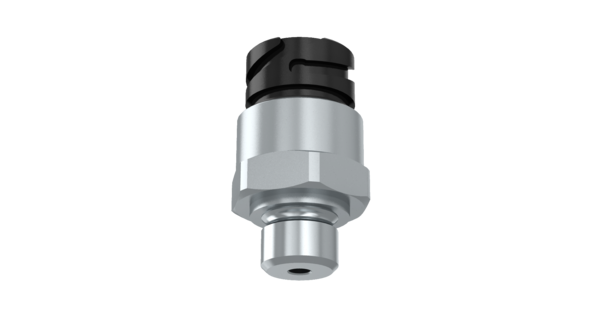

Pressure Sensor
Part Number: 4410441010
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 0.048 |
| Electrical connection | Bayonet DIN 72585 A1-3.1-Sn/K2 |
| Hysteresis | 0.2% FS |
| Linearity | 0.3% FS |
| Max. operating pressure | 16.0 bar |
| Measuring range | 0 to 10.00 bar |
| Port thread 0 | M16 x 1.5 |
| Port threads | M16 x 1.5 |
| Predominance | 0.5 V |
| Product category | Device |
| Protection class | IP6K7/IP6K9K |
| Rated current | 15 mA |
| Sealing | 8114010574 |
| Sensitivity | 0.40 V/bar |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| Type | Piezo-Resistive |
| Version | Without sealing |
| Voltage | 24 V |
| GTIN | 7895851057531 |
| Size (mm x mm x mm) | 55 x 29 x 30 |
| UPC | 193133438984 |
| Weight (kg) | 0.035 |
| Weight (lb) | 0.077 |
OEM Cross References
| Brand | Reference No |
|---|---|
| DAF | 1526532 |
| DAF | 1296494 |
| DAF | 1506009 |
| EVOBUS | A0015421718 |
| EVOBUS | A0035422518 |
| FAW | 361441560A |
| FORD | 4C463C034AA |
| FORD | 6C4619H354BA |
| FREIGHTLINER | TDAS4410441010 |
| FUSO (MITSUBISHI) | MK631983 |
| HINO | 89763E0010 |
| IVECO | 504376765 |
| IVECO | 98472891 |
| KENWORTH | S4410441010 |
| KODAIRA | VS70000146 |
| KRONE | 5058105400 |
| KRONE | 5810540 |
| KRONE | 5058105401 |
| KÖGEL | 337322 |
| KÖGEL | 337549 |
| MAN | 81274210268 |
| MAN | N2255200063 |
| MAN | 81274210163 |
| MAN | N2255200016 |
| MAN | 81274210244 |
| MERCEDES-BENZ | 0015421718 |
| MERCEDES-BENZ | A0015421718 |
| MERCEDES-BENZ | 0035422518 |
| MERCEDES-BENZ | A0035422518 |
| MERCEDES-BENZ | 0055425818 |
| MERITOR | S4410441010 |
| NEOPLAN | 11029390 |
| ORTHAUS | 51809510000 |
| OTOKAR | M05931401 |
| PACCAR | 1526532 |
| PETERBILT | S4410441010 |
| SCANIA | 1738460 |
| SCANIA | 1383410 |
| SCANIA | 1384310 |
| SCANIA | 2090394 |
| SCANIA | 1781199 |
| SCHMITZ CARGOBULL | 052702 |
| SCHMITZ CARGOBULL | SO53406 |
| SCHMITZ CARGOBULL | 053406 |
| SCHMITZ CARGOBULL | 53406 |
| SCHMITZ CARGOBULL | 1098402 |
| SCHWARZMÜLLER | 38109 |
| SCHWARZMÜLLER | 83614 |
| SHAANXI | DZ95189583035 |
| SHOWA | A8188-005800 |
| SOLARIS | 1021400400 |
| SOLARIS | XXXXXXXXXX |
| SOLARIS | 1021400401 |
| TIRSAN | 21151103050 |
| TOHO | T423-037 |
| UD TRUCKS | 2595300Z0B |
| VOLVO | WA4410400130 |
| VOLVO | WA4410441010 |
