Description

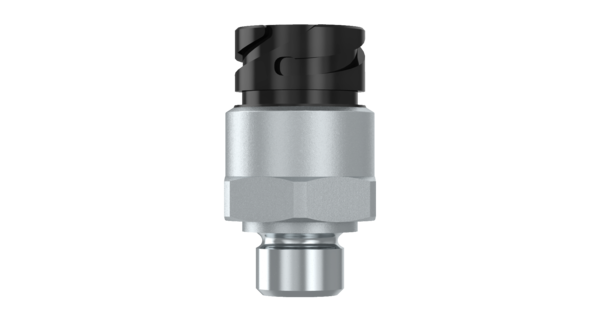

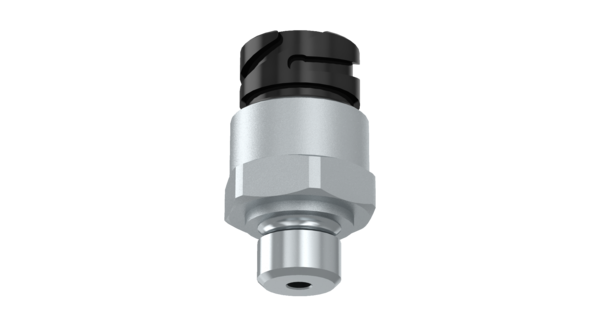

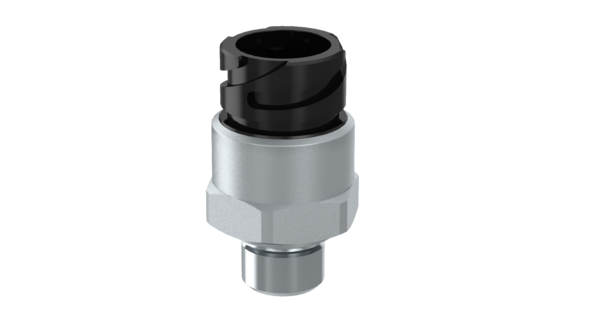

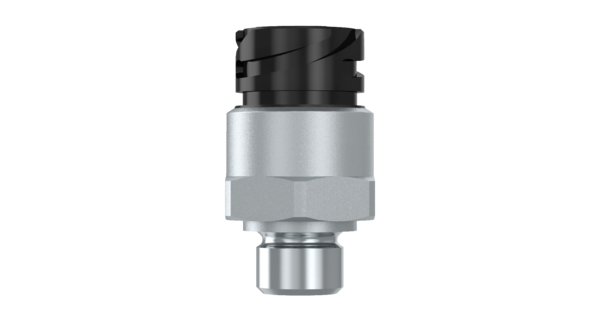

Pressure Sensor
Part Number: 4410441080
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 0.05115 |
| Electrical connection | Bayonet DIN 72585 A1-3.1-Sn/K2 |
| Hysteresis | 0.2% FS |
| Linearity | 0.3% FS |
| Max. operating pressure | 16.0 bar |
| Measuring range | 0 to 10.85 bar |
| Port thread 0 | M16 x 1.5 |
| Port threads | M16 x 1.5 |
| Predominance | 0.5 V |
| Product category | Device |
| Protection class | IP6K7/IP6K9K |
| Rated current | 15 A |
| Sealing | 8114010574 |
| Sensitivity | 0.40 V/bar |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| Type | Piezo-Resistive |
| Version | Without sealing |
| Voltage | 24 V |
| GTIN | 04057875183723 |
| Size (mm x mm x mm) | 55 x 31 x 30 |
| UPC | 193133281511 |
| Weight (kg) | 0.035 |
| Weight (lb) | 0.077162 |
OEM Cross References
| Brand | Reference No |
|---|---|
| DAF | 1529177 |
| FAYMONVILLE | 187701 |
| KODAIRA | VF23932530 |
| NOOTEBOOM | 3267175 |
| SCANIA | 1934576 |
| SCHMITZ CARGOBULL | 1073802 |
| SCHWARZMÜLLER | 81606 |
| VAN HOOL | 11327991 |
