Description

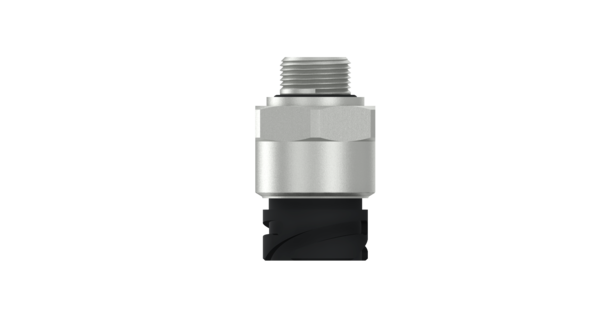

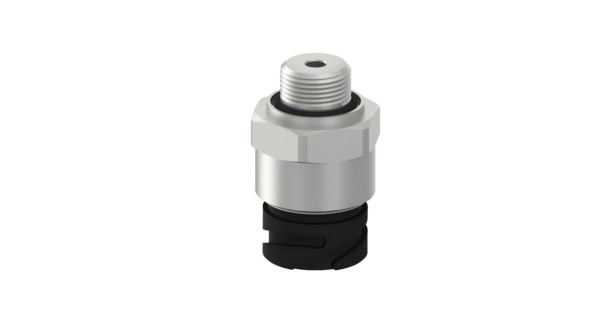

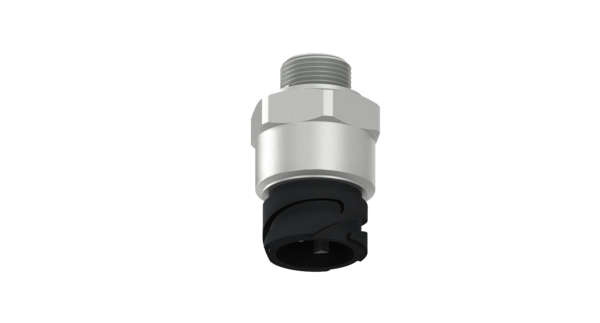

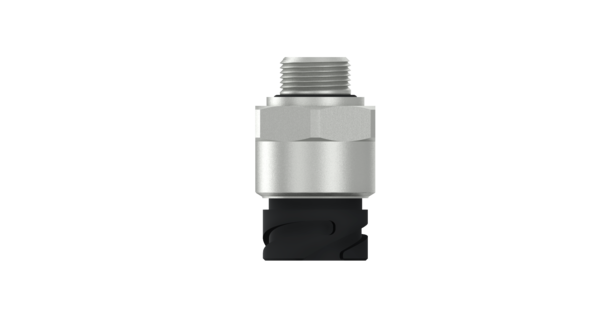

Pressure Sensor
Part Number: 4410441020
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 0.04524 |
| Electrical connection | Bayonet DIN 72585 A1-3.1-Sn/K2 |
| Hysteresis | 0.2% FS |
| Linearity | 0.3% FS |
| Max. operating pressure | 16.0 bar |
| Measuring range | 0 to 10.00 bar |
| Port thread 0 | M16 x 1.5 |
| Port threads | M16 x 1.5 |
| Predominance | 0.5 V |
| Product category | Device |
| Protection class | IP6K7/IP6K9K |
| Rated current | 15 mA |
| Sealing | 8977702504 |
| Sensitivity | 0.40 V/bar |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| Type | Piezo-Resistive |
| Version | With sealing |
| Voltage | 24 V |
| GTIN | 7895851055193 |
| Size (mm x mm x mm) | 52 x 30 x 29 |
| UPC | 193133438991 |
| Weight (kg) | 0.034 |
| Weight (lb) | 0.074957 |
OEM Cross References
| Brand | Reference No |
|---|---|
| ALEXANDER DENNIS | 662200 |
| ALEXANDER DENNIS | 617568 |
| BENALU | M80002901 |
| DAEWOO | 3425002900 |
| DAEWOO | 34250 02900 |
| DAEWOO | P34250 02900 |
| DAF | 1783123 |
| DAF | 1450872 |
| DAF | 1652528 |
| DOLL | 7069647 |
| FAYMONVILLE | 168717 |
| FOTON | H0356D05001A0 |
| FRUEHAUF | M800029 |
| FRUEHAUF | M80002901 |
| HYUNDAI | 559707K701 |
| HYUNDAI | 55970 7K701 |
| HYUNDAI | 58250 UA641 |
| IVECO | 504255336 |
| IVECO | 41200718 |
| IVECO | 504103341 |
| IVECO | 41200703 |
| IVECO | 98472891 |
| KENWORTH | S4410441020 |
| KRONE | 515015646 |
| KRONE | 505810540 |
| KRONE | 5058105400N |
| KÖGEL | 3483130 |
| KÖGEL | 348313 |
| LECITRAILER | 4300630 |
| LEYLAND DAF | ABRD757 |
| LIEBHERR | 10168214 |
| LOHR | A05101320 |
| LOHR | A05101477 |
| MACK | 6300-4410441020 |
| MERCEDES-BENZ | 0055425818 |
| MERITOR | S4410441020 |
| NISSAN | 223659X401 |
| NISSAN | 22365LA30A |
| NOOTEBOOM | 1243506 |
| NOOTEBOOM | 158592 |
| NOOTEBOOM | 16068 |
| PACCAR | 1783123 |
| PETERBILT | S4410441020 |
| RENAULT | 5010143099 |
| SCANIA | 1934575 |
| SCHMITZ CARGOBULL | 1075291 |
| SCHMITZ CARGOBULL | S053406 |
| SCHWARZMÜLLER | 66125 |
| SHAANXI | DZ95189583035 |
| UD TRUCKS | 223659X401 |
| UD TRUCKS | 22365LA30A |
| VAN HOOL | 11110063 |
| VAN HOOL | 11213114 |
| VDL | 759001019 |
| VDL | 41159322 |
| VOLVO | WA4410441020 |
| VOLVO | WAB4410441020 |
| YUTONG | 355000549 |
| ZORZI | 1013170 |
