Description

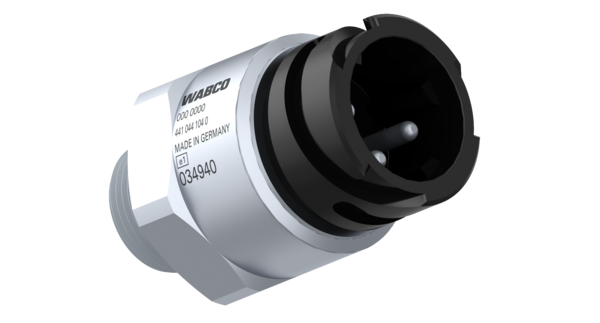

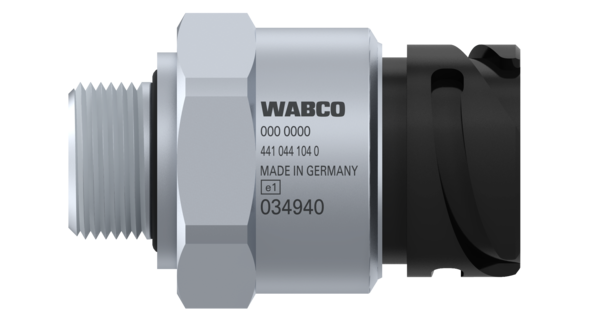

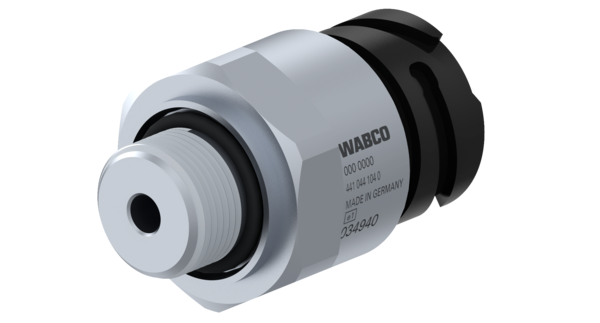

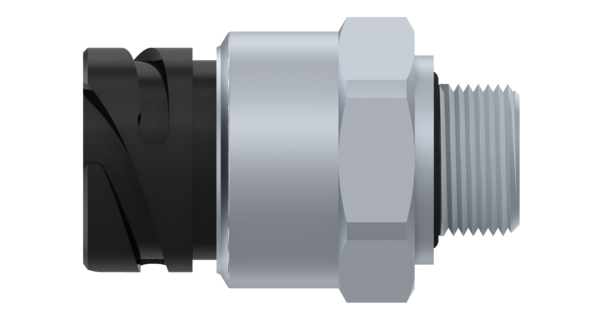

Pressure Sensor
Part Number: 4410441040
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 0.04698 |
| Electrical connection | Bayonet DIN 72585 A1-3.1-Sn/K2 |
| Hysteresis | 0.2% FS |
| Linearity | 0.3% FS |
| Max. operating pressure | 16.0 bar |
| Measuring range | 0 to 12.00 bar |
| Port thread 0 | M16 x 1.5 |
| Port threads | M16 x 1.5 |
| Predominance | 0.5 V |
| Product category | Device |
| Protection class | IP6K7/IP6K9K |
| Rated current | 15 A |
| Sealing | 8977702504 |
| Sensitivity | 0.33 V/bar |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| Type | Piezo-Resistive |
| Version | With sealing |
| Voltage | 24 V |
| GTIN | 04057875183686 |
| Size (mm x mm x mm) | 54 x 29 x 30 |
| UPC | 193133281399 |
| Weight (kg) | 0.033 |
| Weight (lb) | 0.0727525 |
OEM Cross References
| Brand | Reference No |
|---|---|
| DAF | 1737516 |
| IRIZAR | 8015524 |
| LEYLAND DAF | 1737516 |
| MAN | 36274210028 |
