Description

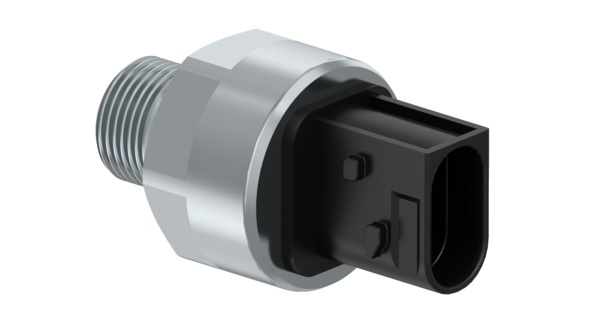

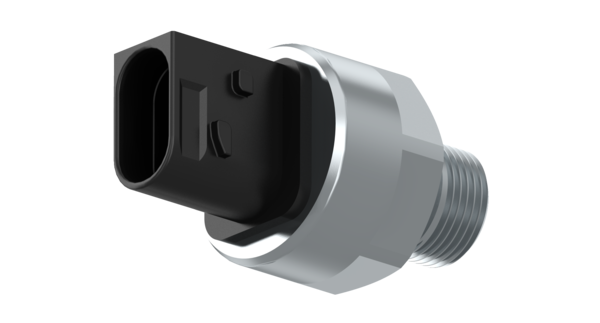

Pressure Sensor
Part Number: 4410442040
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 0.0486 |

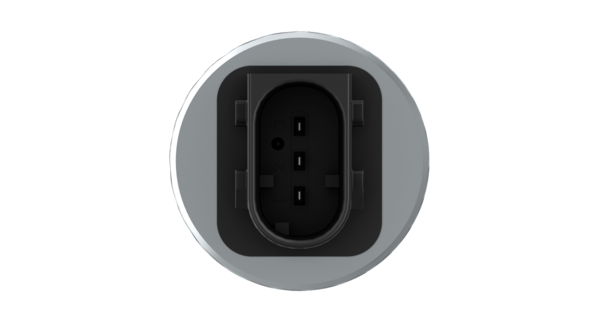

| Electrical connection | HDSCS |
| Hysteresis | 0.2% FS |
| Linearity | 0.2% FS |
| Max. operating pressure | 23.0 bar |

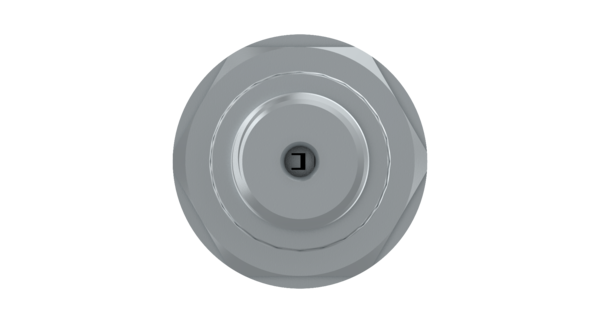

| Port thread 0 | M16 x 1.5 |
| Predominance | 0.5 V |
| Product category | Device |
| Protection class | IP6K7/IP6K6K IP6K8/IP6K9K |
| Rated current | 15 A |
| Sealing | 8114010574 |
| Sensitivity | 0.25 V/bar |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| Type | Piezo-Resistive |
| Version | Without sealing |
| Voltage | 24 V |
| GTIN | 04057875183785 |
| Size (mm x mm x mm) | 30 x 30 x 54 |
| UPC | 193133281382 |
| Weight (kg) | 0.03 |
| Weight (lb) | 0.06614 |
OEM Cross References
| Brand | Reference No |
|---|---|
| HINO | 89420E0060 |
