Description

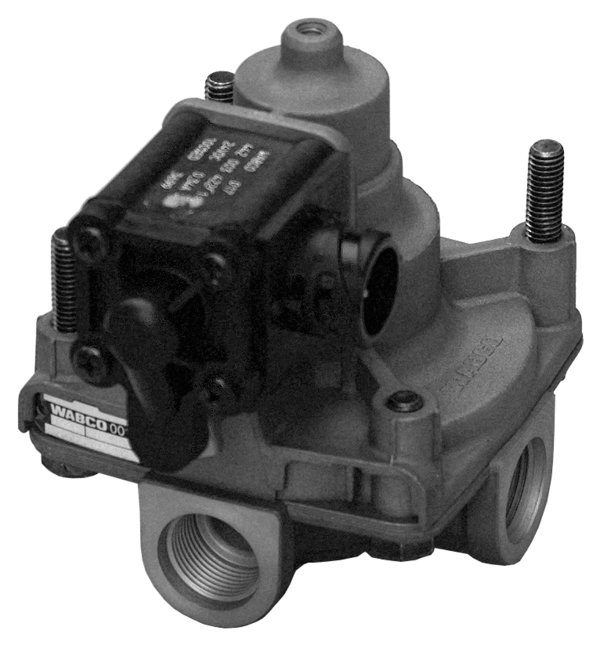

Pressure Regulating Valve
Part Number: 4750200110
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Bolt lengths | 21.0 mm |
| Calculated Volume (dm³) | 1.4991 |
| Delivered pressure | 5.0 at p1 = 8.5 bar |
| Distance between bolts | 75 mm |
| Electrical connection | DIN 72585 1A-2.1-Snbar at p1 = K2 |
| Max. operating pressure | 13.0 bar |
| Mounting | 4 X M8 |
| Port thread 1 | M22 x 1.5 |
| Port thread 2 | M22 x 1.5 |
| Port threads | M22 x 1.5 |
| Product category | Device |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| Voltage | 24 V |
| GTIN | 7895851007628 |
| Size (mm x mm x mm) | 122 x 128 x 96 |
| UPC | 193133483076 |
| Weight (kg) | 0.918 |
| Weight (lb) | 2.0238 |
OEM Cross References
| Brand | Reference No |
|---|---|
| SCANIA | 1405932 |
| SCANIA | 1935030 |
