Description

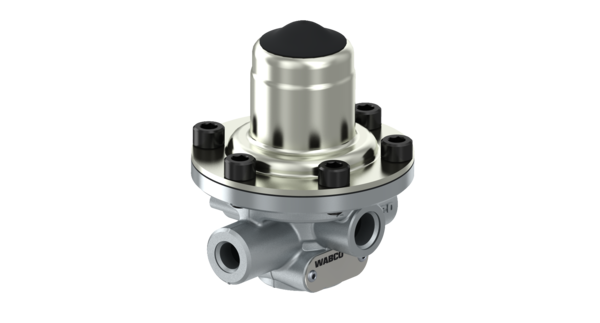

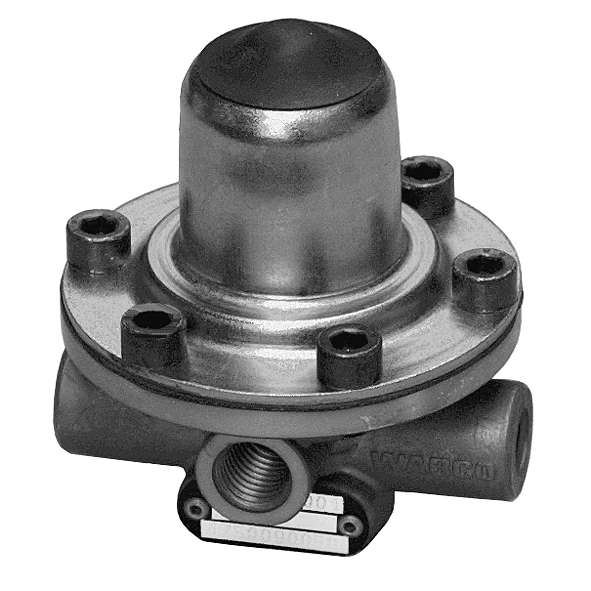

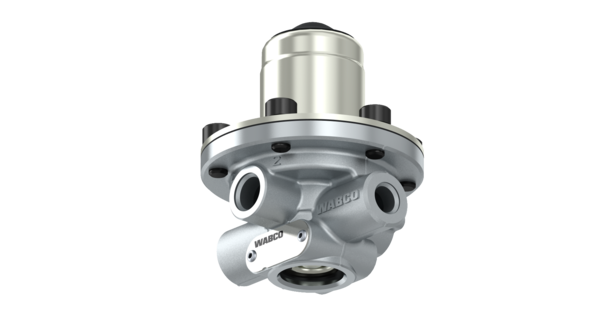

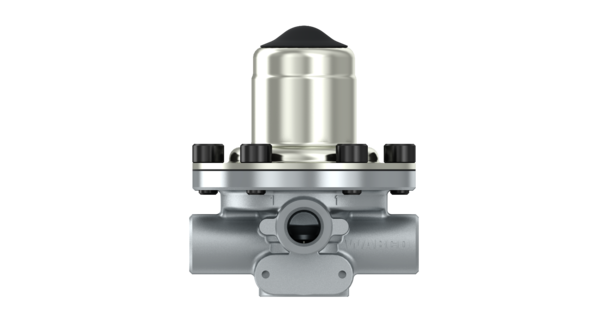

Pressure Reducing Valve
Part Number: 4750090220
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 0.37422 |
| Cooling | Air |
| Delivered pressure | 2.0 at p1 = 3.0 bar |
| Distance between bolts | 54 mm |
| Max. operating pressure | 10.0 bar |
| Nominal diameter | 4.0 mm |
| Port thread 1 | M12 x 1.5 |
| Port thread 2 | M12 x 1.5 |
| Port threads | M12 x 1.5 |
| Product category | Device |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| Total length | 89.0 mm |
| GTIN | 04057875221920 |
| Size (mm x mm x mm) | 81 x 70 x 66 |
| UPC | 193133313984 |
| Weight (kg) | 0.363 |
| Weight (lb) | 0.80028 |
OEM Cross References
| Brand | Reference No |
|---|---|
| ALEXANDER DENNIS | 6566267 |
| EVOBUS | A0034311006 |
| FELDBINDER | 006963 |
| IRISBUS | 99434701 |
| IVECO | 99434701 |
| MAN | 81521016220 |
| MERCEDES-BENZ | 0034311006 |
| MERCEDES-BENZ | A0034311006 |
| NEOPLAN | 11018629 |
| NEOPLAN | 81521016220 |
| SCANIA | 461926 |
| VAN HOOL | 637210110 |
| VDL | 20236485 |
| VDL | 1199682 |
| VOLVO | 3032761 |
| VOLVO | 70313806 |
| VOLVO | 9521613 |
