Description

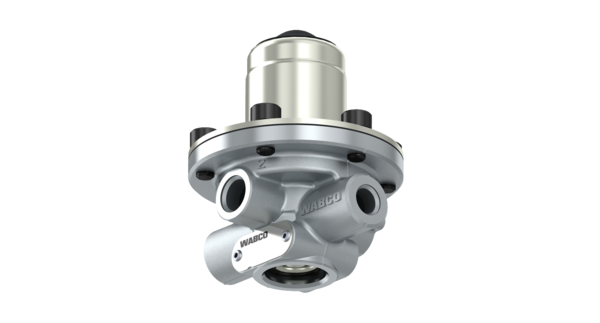

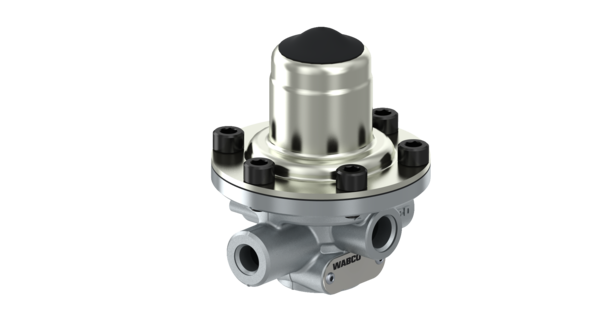

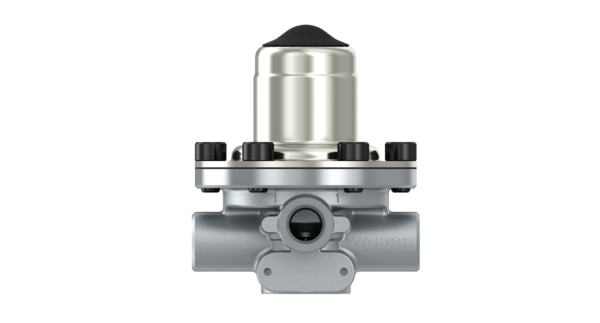

Pressure Reducing Valve
Part Number: 4750090210
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 0.37884 |
| Cooling | Air |
| Delivered pressure | 1.2 at p1 = 2.0 bar |
| Distance between bolts | 54 mm |
| Max. operating pressure | 10.0 bar |
| Nominal diameter | 4.0 mm |
| Port thread 1 | M12 x 1.5 |
| Port thread 2 | M12 x 1.5 |
| Port threads | M12 x 1.5 |
| Product category | Device |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| Total length | 89.0 mm |
| GTIN | 7895851024571 |
| Size (mm x mm x mm) | 82 x 70 x 66 |
| UPC | 193133313977 |
| Weight (kg) | 0.362 |
| Weight (lb) | 0.79807 |
OEM Cross References
| Brand | Reference No |
|---|---|
| ALEXANDER DENNIS | 6537091 |
| DAF | 1438819 |
| DAF | 1189933 |
| EVOBUS | A0034310906 |
| IRISBUS | 99434702 |
| IVECO | 99434702 |
| MAN | 81521016221 |
| MERCEDES-BENZ | 0034310906 |
| MERCEDES-BENZ | A0034310906 |
| MERCEDES-BENZ | A6994380281 |
| NEOPLAN | 112231600 |
| NEOPLAN | 11018625 |
| NEOPLAN | 81521016221 |
| SCANIA | 461925 |
| SOLARIS | 1102193000 |
| VAN HOOL | 637210100 |
| VDL | 1189933 |
| VOLVO | 3032760 |
