Description

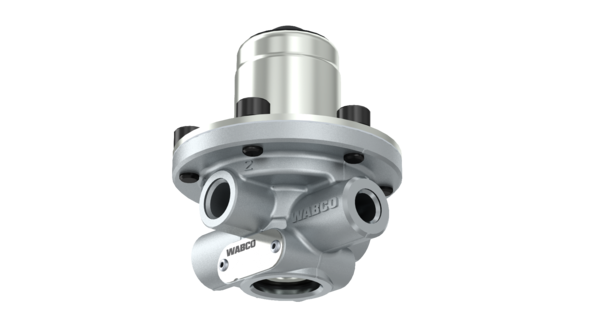

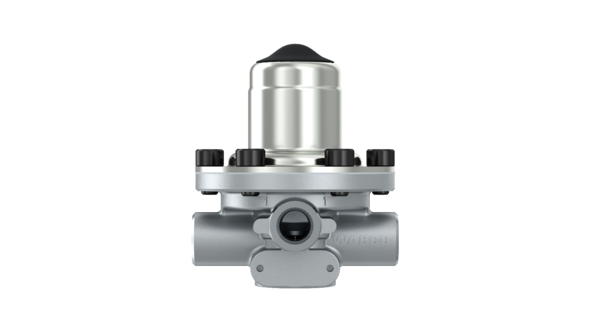

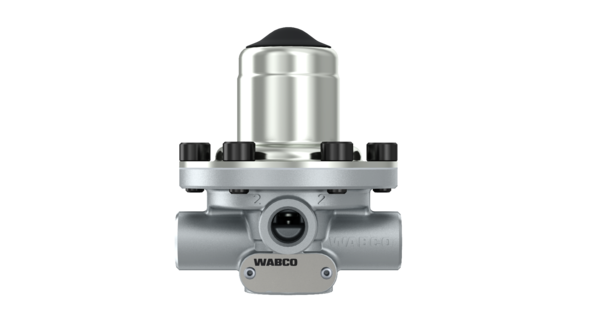

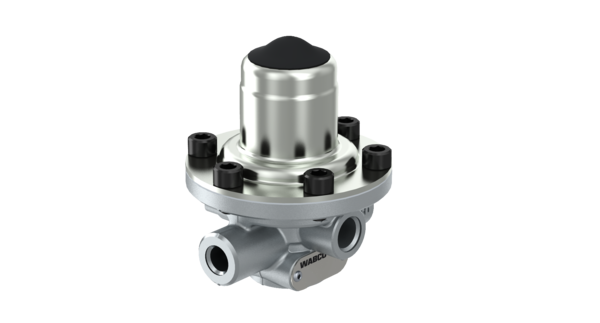

Pressure Reducing Valve
Part Number: 4750090260
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 0.41832 |
| Cooling | Air |
| Delivered pressure | 3.0 at p1 = 8.0 bar |
| Distance between bolts | 54 mm |
| Max. operating pressure | 10.0 bar |
| Nominal diameter | 4.0 mm |
| Port thread 1 | M12 x 1.5 |
| Port thread 2 | M12 x 1.5 |
| Port threads | M12 x 1.5 |
| Product category | Device |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| Total length | 89.0 mm |
| GTIN | 7895851024588 |
| Size (mm x mm x mm) | 72 x 70 x 83 |
| UPC | 193133313960 |
| Weight (kg) | 0.376 |
| Weight (lb) | 0.82894 |
OEM Cross References
| Brand | Reference No |
|---|---|
| ALEXANDER DENNIS | 4750090260 |
| EVOBUS | A0034311106 |
| IRISBUS | 99434700 |
| IRISBUS | 98444991 |
| IVECO | 98444991 |
| IVECO | 99434700 |
| IVECO | 9844499 |
| MAN | 81521016248 |
| MAN | 9844499 |
| MERCEDES-BENZ | 0034311106 |
| MERCEDES-BENZ | A0034311106 |
| MERCEDES-BENZ | 9844499 |
| NEOPLAN | 11011333 |
| NEOPLAN | 81521016248 |
| SCANIA | 461927 |
| SCANIA | 9844499 |
| SOLARIS | 0501202000 |
| VAN HOOL | 637210940 |
| VDL | 20330368 |
| VDL | 1199683 |
