Description

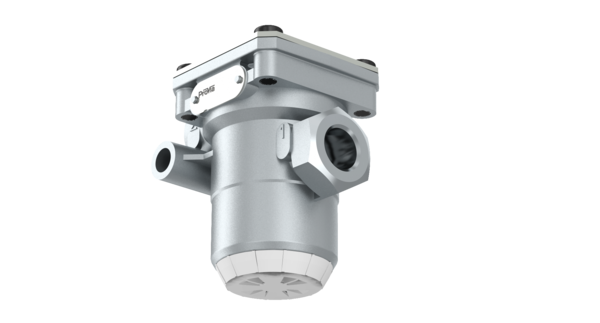

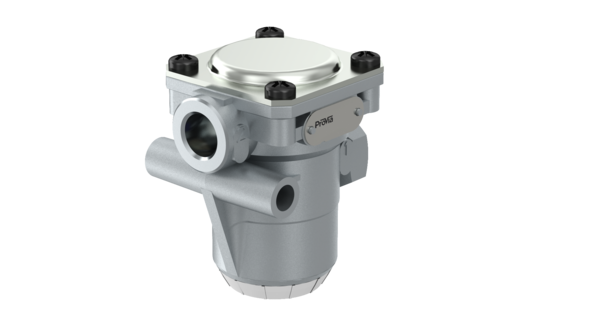

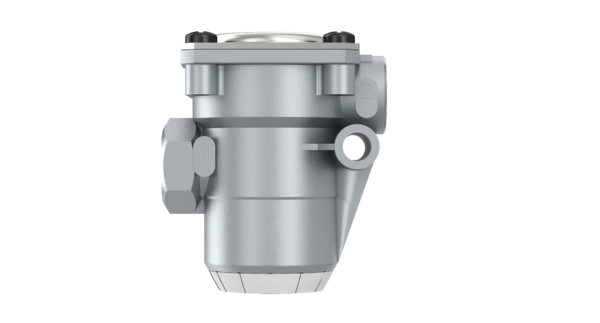

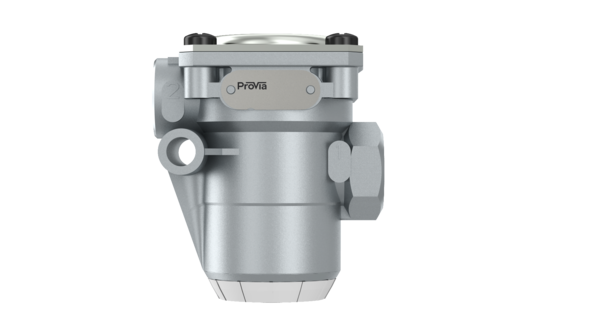

Pressure Limiting Valve
Part Number: PRO0150050
Technical Specifications
| Brand | ProVia |
| Part type | Reliable spare parts |
| Calculated Volume (dm³) | 0.6624 |
| Delivered pressure | 8.0 at p1 = 12.0 bar |
| Delivery pressure | 8 bar |
| Max. operating pressure | 20.0 bar |
| Mounting | 2x Ø 8.6 mm |
| Opening pressure | 10.5 bar |
| Port thread 1 | M16 x 1.5 |
| Port thread 2 | M16 x 1.5 |
| Ports | M16 × 1.5 |
| ProVia warranty | 1 year |
| Product category | Device |
| Supply pressure | 12.0 bar |
| Technical specification | AM specification |
| Temperature range | -40°C to +80°C |
| GTIN | 04057877001629 |
| Size (mm x mm x mm) | 100 x 92 x 72 |
| UPC | 193134003341 |
| Weight (kg) | 0.398 |
| Weight (lb) | 0.87744 |
OEM Cross References
| Brand | Reference No |
|---|---|
| DAF | 1505095 |
| EVOBUS | 8283963000 |
| EVOBUS | A0024312406 |
| IVECO | 500269323 |
| KÄSSBOHRER | 8026015000 |
| MAN | 82521016036 |
| MERCEDES-BENZ | A0024312406 |
| MERCEDES-BENZ | 0024312406002 |
| MERCEDES-BENZ | A0024312406002 |
| PACCAR | 1505095 |
| RENAULT | 5021170206 |
| SCANIA | 1935024 |
| SCHMITZ CARGOBULL | 8026015000 |
