Description

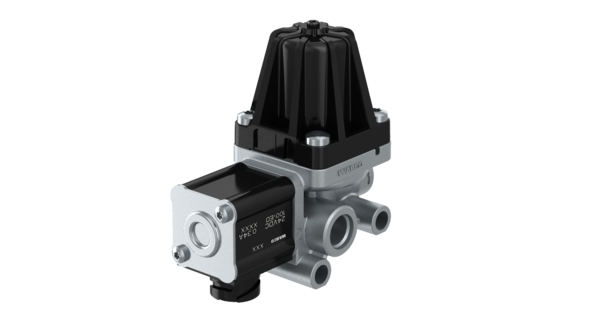

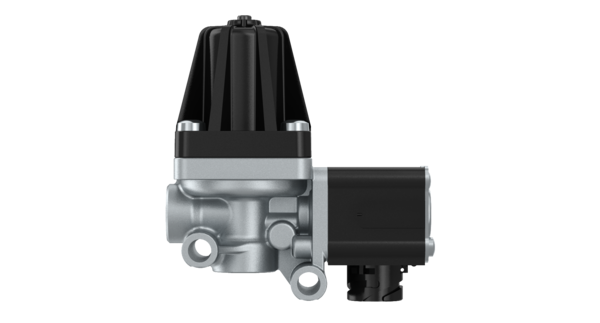

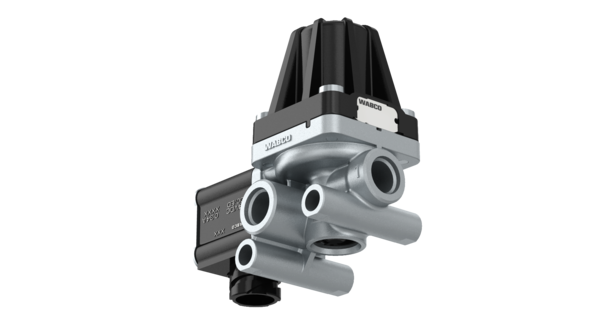

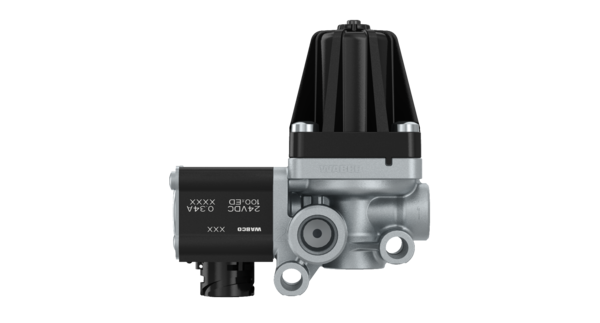

Pressure Limiting Valve
Part Number: 9750090010
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Application | Mercedes |
| Calculated Volume (dm³) | 0.86016 |
| Delivered pressure | 5.5 at p1 = 8.5 bar |
| Electrical connection | Bayonet DIN 72585 A1-2.1-Sn/K2 |
| Max. operating pressure | 13.0 bar |
| Mounting | 2x Ø 8 mm |
| Nominal diameter | 1.8 mm |
| Nominal flow rate | 0.025 (L/min) |
| Port thread 1 | M16 x 1.5 JED-388-3 |
| Port thread 2 | M16 x 1.5 JED – 388-3 |
| Port thread 3 | Flap Exhaust |
| Product category | Device |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| Type | Air Control Unit |
| Voltage | 24 V |
| GTIN | 7895851068155 |
| Size (mm x mm x mm) | 120 x 64 x 112 |
| UPC | 193133450467 |
| Weight (kg) | 0.537 |
| Weight (lb) | 1.1839 |
OEM Cross References
| Brand | Reference No |
|---|---|
| FREIGHTLINER | TDAS9750090010 |
| KENWORTH | S9750090010 |
| KÄSSBOHRER | 82855460000 |
| LIEBHERR | 10664729 |
| MACK | 6300-9750090010 |
| MAFI | 0005661836 |
| MERCEDES-BENZ | A0044310306 |
| MERCEDES-BENZ | 0044310306 |
| MERITOR | S9750090010 |
| PETERBILT | S9750090010 |
| VOLVO | WAB9750090010 |
