Description

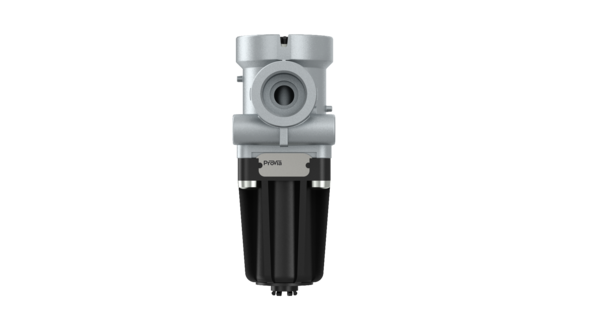

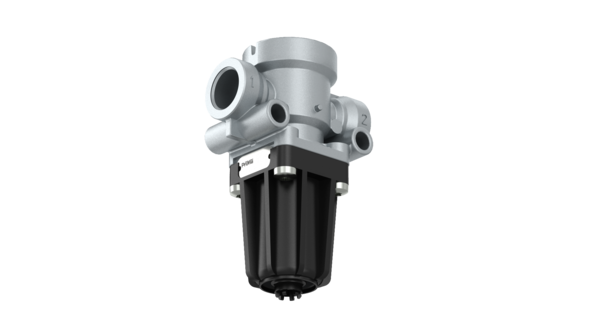

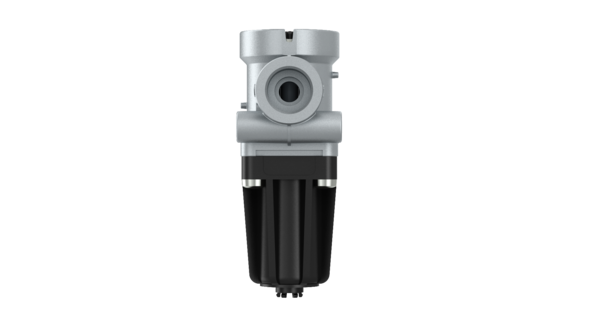

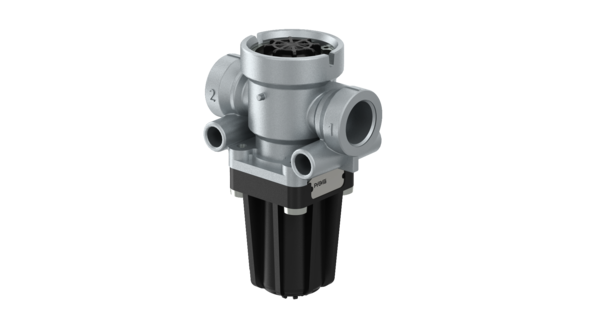

Pressure Limiting Valve
Part Number: PRO0103010
Technical Specifications
| Brand | ProVia |
| Part type | Reliable spare parts |
| Adjustable | Yes |
| Calculated Volume (dm³) | 1.1866 |
| Delivered pressure | 10.0 at p1 = 12.5 bar |
| Delivery pressure | 10 bar |
| Distance between bolts | 56 mm |
| Exhaust | Ø 4 mm |
| Max. operating pressure | 20.0 bar |
| Mounting | 2x Ø 8.6 mm |
| Port thread 1 | M22 x 1.5 |
| Port thread 2 | M22 x 1.5 |
| Ports | M22 x 1.5 |
| ProVia warranty | 1 year |
| Product category | Device |
| Range of adjustment | 10.0 to 12.5 bar |
| Supply pressure | 12.5 bar |
| Technical specification | AM specification |
| Temperature range | -40°C to +80°C |
| Variant | Height limitation |
| GTIN | 04057877001803 |
| Size (mm x mm x mm) | 180 x 103 x 64 |
| UPC | 193134004430 |
| Weight (kg) | 0.434 |
| Weight (lb) | 0.95681 |
OEM Cross References
| Brand | Reference No |
|---|---|
| DAEWOO | 4750103010 |
| DAF | 1518113 |
| IRIZAR | 8015532 |
| MAN | 81521016270 |
| MAN | 81521019270 |
| NEOPLAN | 81521016270 |
| PACCAR | 1518113 |
| SCANIA | 1935018 |
| TATRA | 4750103010 |
