Description

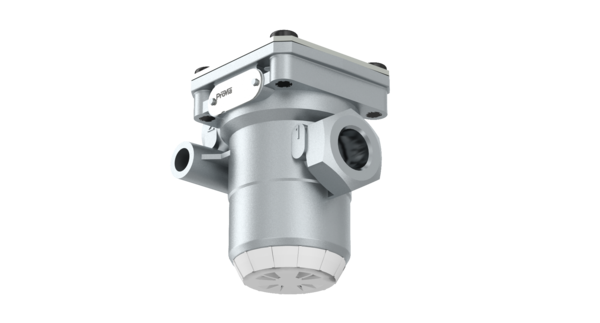

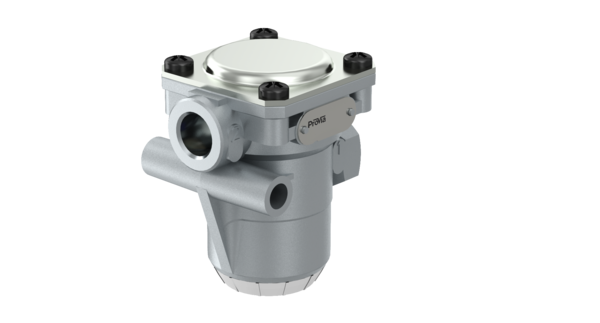

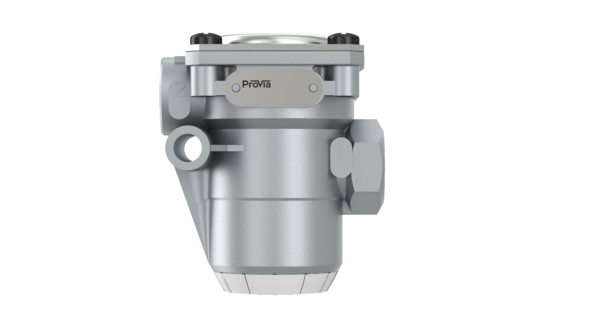

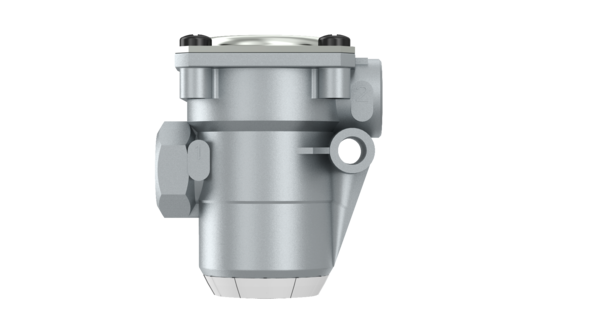

Pressure Limiting Valve
Part Number: PRO0150680
Technical Specifications
| Brand | ProVia |
| Part type | Reliable spare parts |
| Calculated Volume (dm³) | 0.6624 |
| Delivered pressure | 9.0 at p1 = 10.0 bar |
| Delivery pressure | 9 bar |
| Max. operating pressure | 14.0 bar |
| Mounting | 2x Ø 8.6 mm |
| Opening pressure | 11.5 bar |
| Port thread 1 | M16 x 1.5 |
| Port thread 2 | M16 x 1.5 |
| Ports | M16 × 1.5 |
| ProVia warranty | 1 year |
| Product category | Device |
| Supply pressure | 10 bar |
| Technical specification | AM specification |
| Temperature range | -40°C to +80°C |
| GTIN | 04057877001650 |
| Size (mm x mm x mm) | 100 x 92 x 72 |
| UPC | 193134003358 |
| Weight (kg) | 0.4 |
| Weight (lb) | 0.88185 |
OEM Cross References
| Brand | Reference No |
|---|---|
| DAF | 1725688 |
| LEYLAND DAF | 1725688 |
