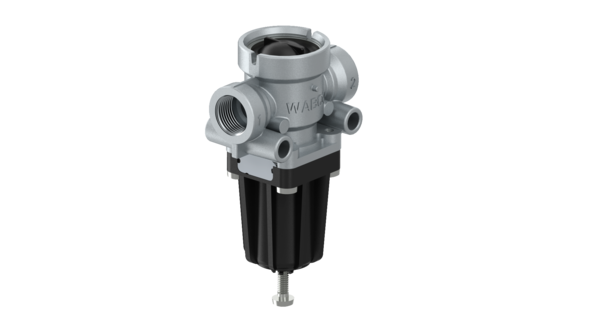

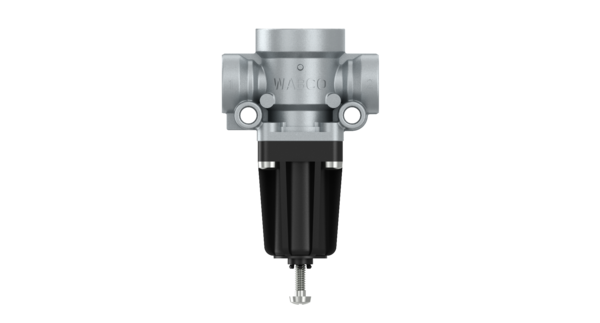

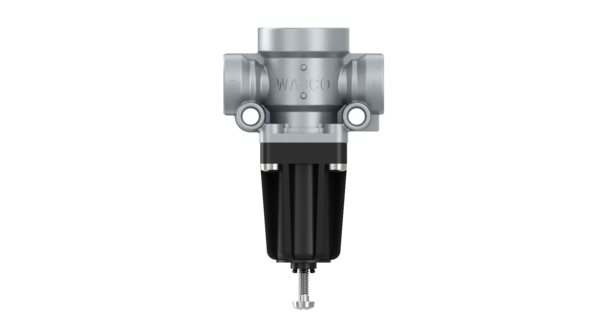

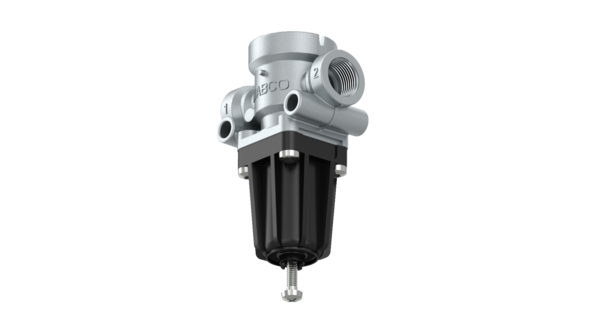

Pressure Limiting Valve - 4750103110
Pressure Limiting Valve - 4750103110
Pressure Limiting Valve - 4750103110
Pressure Limiting Valve - 4750103110
Pressure Limiting Valve - 4750103110

Pressure Limiting Valve

€85,20

Pressure Limiting Valve – WABCO Original – Part No: 4750103110

Ask about this product
SKU: 4750103110 Category:Air Brake Systems Tags:Original Spare PartWABCO Brand: WABCO
  • Description
  • Additional information

Description

Pressure Limiting Valve

Part Number: 4750103110

Technical Specifications

Brand WABCO
Part type Premium original quality
Calculated Volume (dm³) 0.6732
Comments Nominal diameter of exhaust ø 4
Delivered pressure 3.5 at p1 = 8.5 bar
Distance between bolts 56 mm
Exhaust Ø 4 mm
Max. operating pressure 20.0 bar
Mounting 2x Ø 8.6 mm
Port thread 1 M22 x 1.5
Port thread 2 M22 x 1.5
Port threads M22 x 1.5
Product category Device
Range of adjustment 1.2 to 6.2 bar
Technical specification OE specification
Temperature range -40°C to +80°C
GTIN 04057875222446
Size (mm x mm x mm) 144 x 85 x 55
UPC 193133255970
Weight (kg) 0.361
Weight (lb) 0.79587

OEM Cross References

Brand Reference No
FAUN 99707006314
GENERAL TRAILERS 2PV0006004
IVECO 04457842
MAN 81521016084
MAN 81521016086
MAN 81521016211
MERCEDES-BENZ 0034294444
SCANIA 2090279
VOLVO WA4750103110

Additional information

Weight 0,361 kg
Dimensions 144 × 85 × 55 cm
Brand

WABCO

Part type

Premium original quality

Calculated Volume (dm³)

0.6732

Comments

Nominal diameter of exhaust ø 4

Delivered pressure

3.5 at p1 = 8.5 bar

Distance between bolts

56 mm

Exhaust

Ø 4 mm

Max. operating pressure

20.0 bar

Mounting

2x Ø 8.6 mm

Port thread 1

M22 x 1.5

Port thread 2

M22 x 1.5

Port threads

M22 x 1.5

Product category

Device

Range of adjustment

1.2 to 6.2 bar

Technical specification

OE specification

Temperature range

-40°C to +80°C

Size (mm x mm x mm)

144 x 85 x 55

UPC

193133255970

Weight (kg)

0.361

Weight (lb)

0.79587

GTIN

04057875222446

OEM References

FAUN: 99707006314, GENERAL TRAILERS: 2PV0006004, IVECO: 04457842, MAN: 81521016084, MAN: 81521016086, MAN: 81521016211, MERCEDES-BENZ: 0034294444, SCANIA: 2090279, VOLVO: WA4750103110
