Description

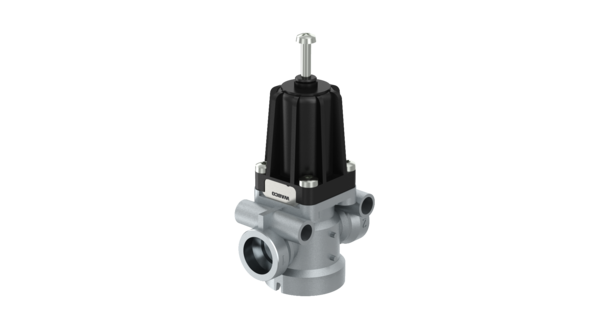

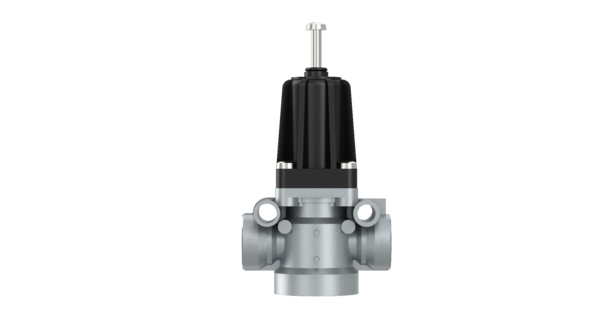

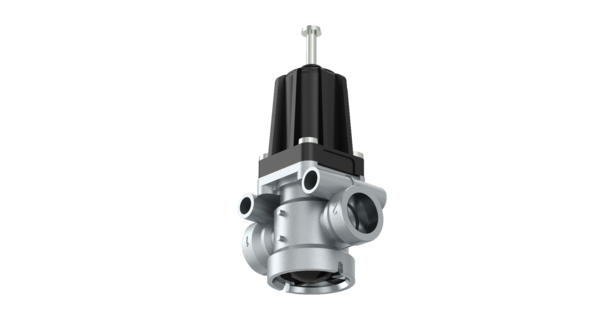

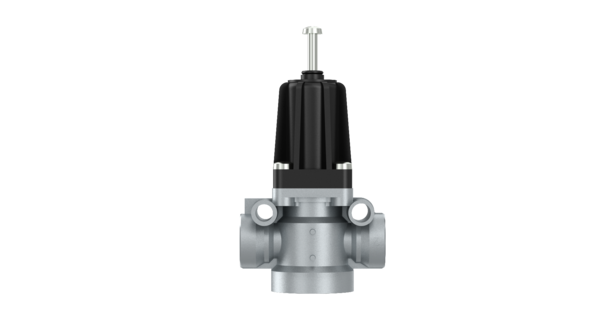

Pressure Limiting Valve
Part Number: 4750103027
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 0.6545 |
| Delivered pressure | 5.3 at p1 = 7.5 bar |
| Distance between bolts | 56 mm |
| Exchange unit for | 4750103020 |
| Max. operating pressure | 20.0 bar |
| Mounting | 2x Ø 8.6 mm |
| Port thread 1 | M22 x 1.5 |
| Port thread 2 | M22 x 1.5 |
| Port threads | M22 x 1.5 |
| Product category | Device |
| Range of adjustment | 1.2 to 6.2 bar |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| GTIN | 04057875222408 |
| Size (mm x mm x mm) | 140 x 85 x 55 |
| UPC | 193133256519 |
| Weight (kg) | 0.364 |
| Weight (lb) | 0.80248 |
OEM Cross References
| Brand | Reference No |
|---|---|
| DAF | 1506192R |
| SCANIA | 1935019 |
| VOLVO | WA4750103027 |
