Description

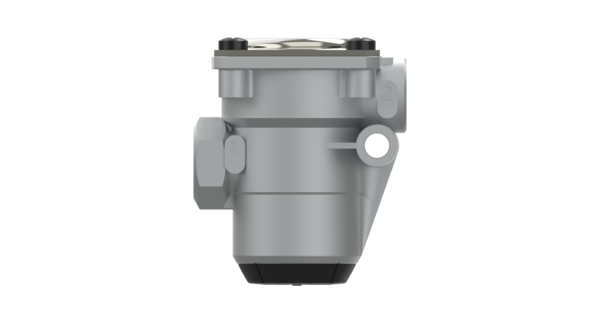

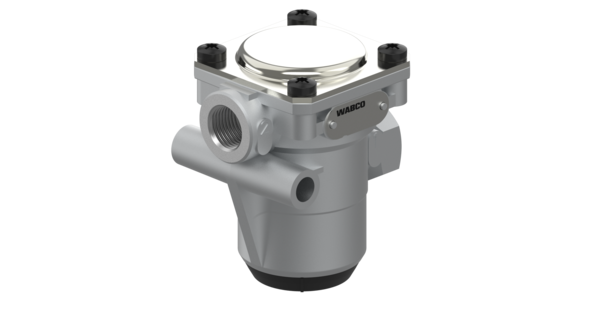

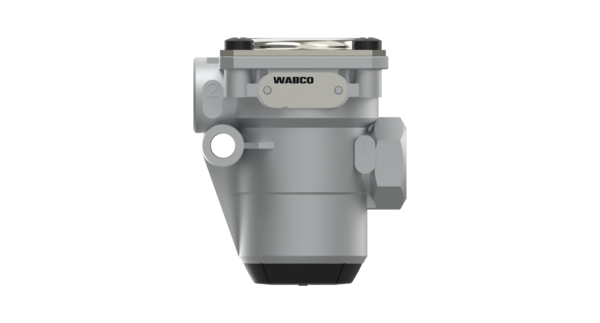

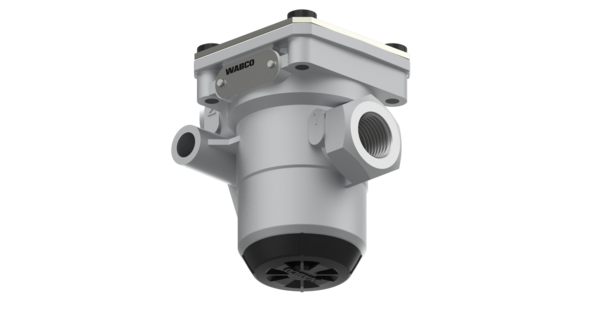

Pressure Limiting Valve
Part Number: 4750155000
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 0.345 |
| Comments | p1 max.=20 bar (if constant) |
| Delivered pressure | 6.5 at p1 = 8.5 bar |
| Max. operating pressure | 20.0 bar |
| Mounting | 1x Ø 8.2 mm |
| Opening pressure | 9 bar |
| Port thread 1 | M16 x 1.5 |
| Port thread 2 | M16 x 1.5 |
| Port threads | M16 x 1.5 |
| Product category | Device |
| Range of adjustment | 4.0 to 8.0 bar |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| GTIN | 04057875223160 |
| Size (mm x mm x mm) | 71 x 60 x 81 |
| UPC | 193133258346 |
| Weight (kg) | 0.4 |
| Weight (lb) | 0.881848 |
OEM Cross References
| Brand | Reference No |
|---|---|
| DAF | 1506196 |
| FAYMONVILLE | 00879 |
| IVECO | 8010002097MO |
| IVECO | 98177146 |
| LECITRAILER | 4110841 |
| LOHR | 80239437 |
| LOHR | A05021206 |
| NOOTEBOOM | 308062 |
| NOOTEBOOM | 05700 |
| OTOKAR | 13H0008530AA |
| PACCAR | 1506196 |
| SCANIA | 1370608 |
| SCANIA | 1012128 |
| SCANIA | 1912299 |
| VAN HOOL | 637211400 |
| VDL | 28220100700 |
| VOLVO | 11190926 |
