Description

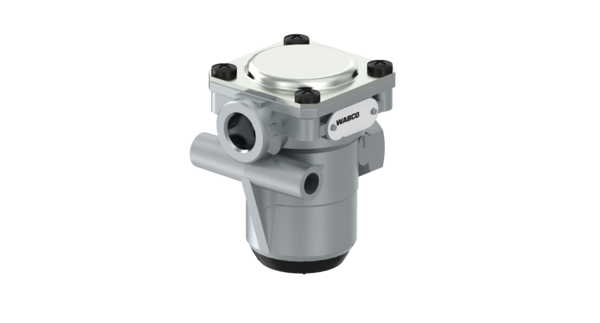

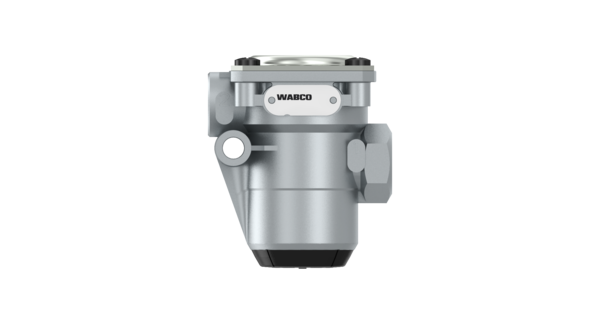

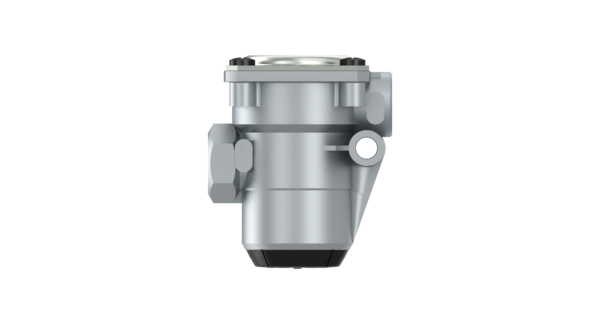

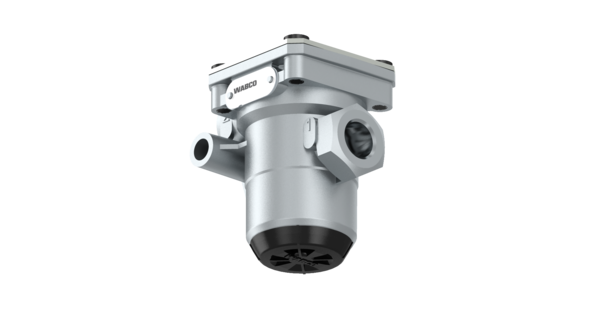

Pressure Limiting Valve
Part Number: 4750150010
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 0.38106 |
| Delivered pressure | 7.4 at p1 = 16.0 bar |
| Max. operating pressure | 20.0 bar |
| Mounting | 1x Ø 8.2 mm |
| Opening pressure | 9.9 bar |
| Port thread 1 | M16 x 1.5 |
| Product category | Device |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| GTIN | 04057875222705 |
| Size (mm x mm x mm) | 87 x 73 x 60 |
| UPC | 193133444305 |
| Weight (kg) | 0.358 |
| Weight (lb) | 0.789 |
OEM Cross References
| Brand | Reference No |
|---|---|
| DAF | 1505094 |
| DEUTZ | 04347830 |
| DEUTZ | 4347830 |
| EVOBUS | A0034310106 |
| FENDT | 186880020010 |
| FENDT | F186880020010 |
| FREIGHTLINER | TDAS4750150010 |
| IVECO | 0478 0202 |
| JOHN DEERE | AL67648 |
| KENWORTH | S4750150010 |
| MACK | 8235-S4750150010 |
| MACK | 6300-4750150010 |
| MAN | 81521016150 |
| MAN | 81521016161 |
| MAN | 81521016189 |
| MAN | 81521616201 |
| MAN | 81521616229 |
| MAN | 81521616288 |
| MAN | 81521019150 |
| MERCEDES-BENZ | 0014315706 |
| MERCEDES-BENZ | 0034310106 |
| MERCEDES-BENZ | A0034310106 |
| MERITOR | S4750150010 |
| NEOPLAN | 81521016150 |
| PACCAR | 1505094 |
| PETERBILT | S4750150010 |
| SCANIA | 1935021 |
| VOLVO | WAB4750150010 |
| VW | 600607261 |
