Description

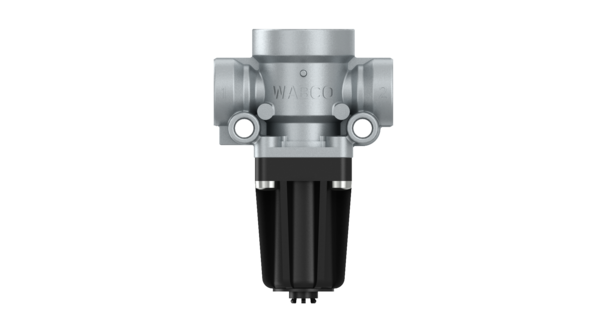

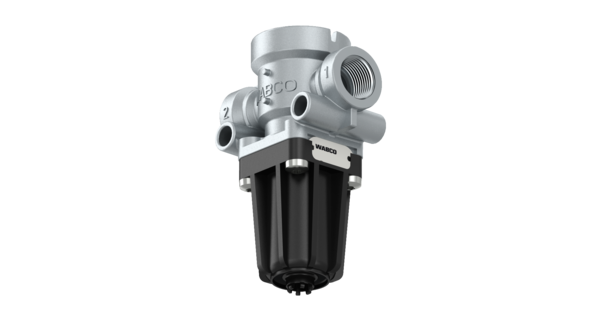

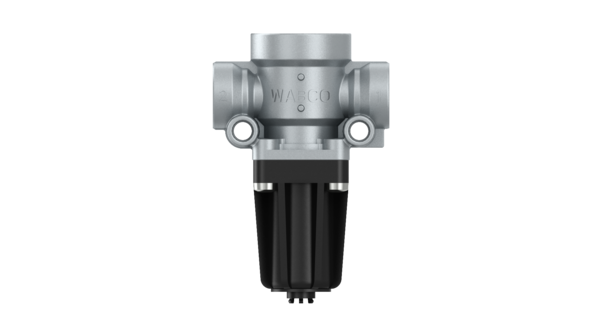

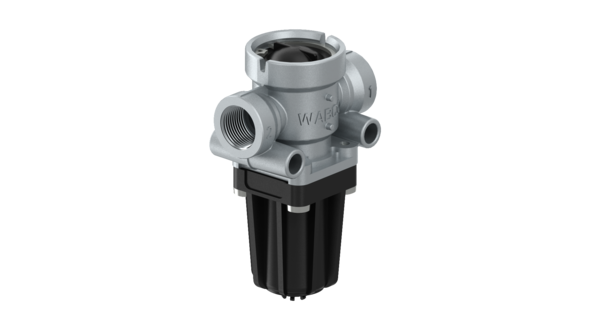

Pressure Limiting Valve
Part Number: 4750103070
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 0.5355 |
| Comments | Nominal diameter of exhaust ø 4 |
| Delivered pressure | 1.8 at p1 = 8.0 bar |
| Distance between bolts | 56 mm |
| Exhaust | Ø 4 mm |
| Max. operating pressure | 20.0 bar |
| Mounting | 2x Ø 8.6 mm |
| Port thread 1 | M22 x 1.5 |
| Port thread 2 | M22 x 1.5 |
| Port threads | M22 x 1.5 |
| Product category | Device |
| Range of adjustment | 1.2 to 6.2 bar |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| GTIN | 04057875222484 |
| Size (mm x mm x mm) | 85 x 50 x 126 |
| UPC | 193133444268 |
| Weight (kg) | 0.365 |
| Weight (lb) | 0.80469 |
OEM Cross References
| Brand | Reference No |
|---|---|
| DAF | 1503133 |
| FELDBINDER | 011591 |
| GOLDHOFER | 151866 |
| KEMPF | 2105005 |
| KENWORTH | S4750103070 |
| KRONE | 58125050 |
| KRONE | 5812505 |
| KRONE | 505812505 |
| KÄSSBOHRER | 21151103304 |
| LANGENDORF | 1111700 |
| MAN | 84521016040 |
| MERITOR | S4750103070 |
| OTOKAR | AIF1737 |
| PACCAR | 1503133 |
| PETERBILT | S4750103070 |
| SAF | 4425007700 |
| SAF | 04425007700 |
| SCANIA | 2090276 |
| SCHMITZ CARGOBULL | 050602 |
| SCHMITZ CARGOBULL | 50602 |
| SCHMITZ CARGOBULL | 114164 |
| SCHMITZ CARGOBULL | INS0120004 |
| TIRSAN | 21151103304 |
| VOLVO | WA4750103070 |
