Description

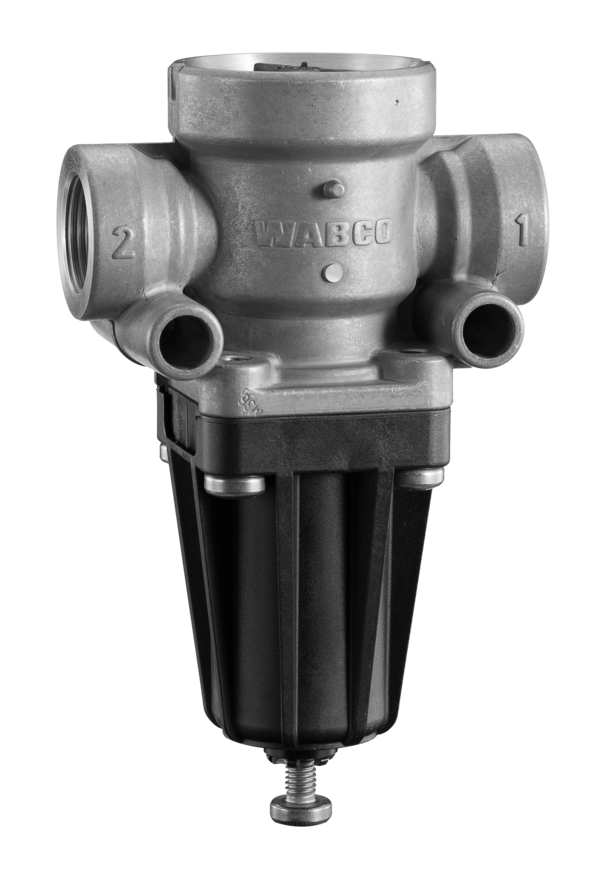

Pressure Limiting Valve
Part Number: 4750103050
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 0.68255 |
| Comments | Nominal diameter of exhaust ø 4 |
| Delivered pressure | 6.0 at p1 = 7.5 bar |
| Distance between bolts | 56 mm |
| Exhaust | Ø 4 mm |
| Max. operating pressure | 20.0 bar |
| Mounting | 2x Ø 8.6 mm |
| Port thread 1 | M22 x 1.5 |
| Port thread 2 | M22 x 1.5 |
| Port threads | M22 x 1.5 |
| Product category | Device |
| Range of adjustment | 5.8 to 10.8 bar |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| GTIN | 7895851070417 |
| Size (mm x mm x mm) | 146 x 85 x 55 |
| UPC | 193133259053 |
| Weight (kg) | 0.37 |
| Weight (lb) | 0.81571 |
OEM Cross References
| Brand | Reference No |
|---|---|
| DAEWOO | 3425600060 |
| DAF | 1518931 |
| FAUN | 99707005414 |
| FORD | 3C462L129A2A |
| GOLDHOFER | 150872 |
| KODAIRA | VS70000164 |
| KÄSSBOHRER | 21622300003 |
| KÖGEL | 335702 |
| LANGENDORF | 1111694 |
| LIEBHERR | 502662708 |
| MERCEDES-BENZ | A6623201758 |
| MERCEDES-BENZ | 6623201758 |
| SCANIA | 2090274 |
| SCHMITZ CARGOBULL | 050608 |
| SCHMITZ CARGOBULL | 50608 |
| SCHWARZMÜLLER | 35230 |
| SHOWA | A8188-006500 |
| TIRSAN | 21622300003 |
| VDL | 41156051 |
| VOLVO | 527331288000 |
| VOLVO | WA4750103050 |
