Description

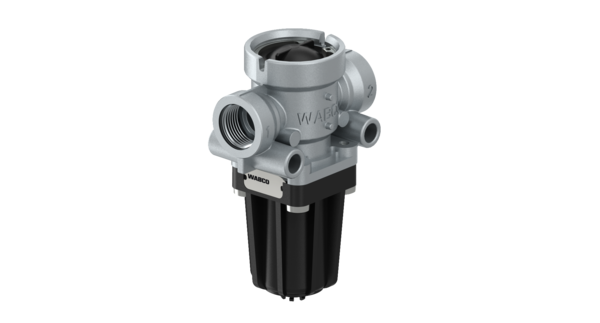

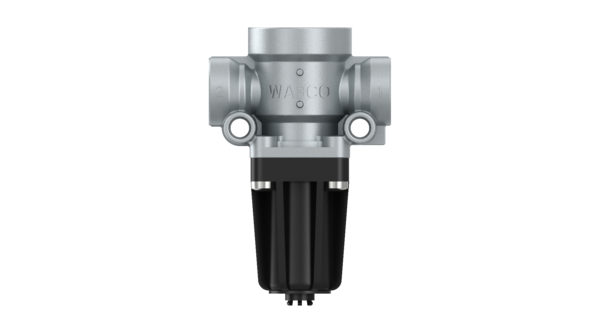

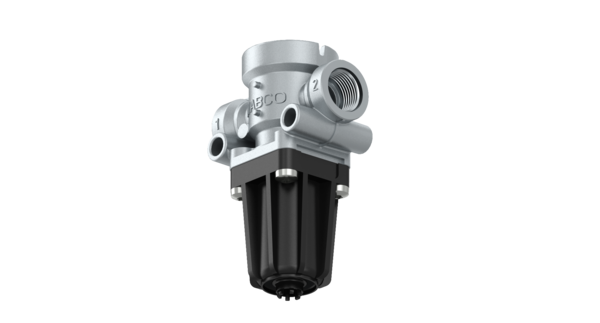

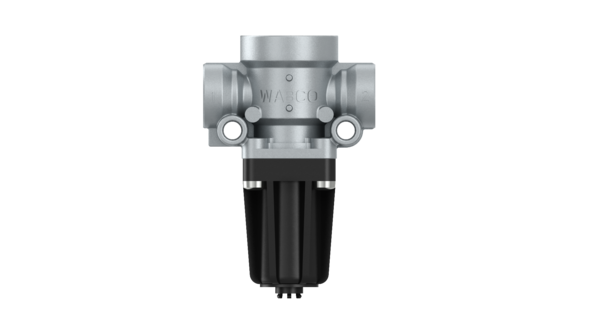

Pressure Limiting Valve
Part Number: 4750103320
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 0.60775 |
| Delivered pressure | 3.5 at p1 = 10.0 bar |
| Distance between bolts | 56 mm |
| Exhaust | Ø 4 mm |
| Max. operating pressure | 20.0 bar |
| Mounting | 2x Ø 8.6 mm |
| Port thread 1 | M22 x 1.5 |
| Port thread 2 | M22 x 1.5 |
| Product category | Device |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| GTIN | 04057875222590 |
| Size (mm x mm x mm) | 130 x 85 x 55 |
| UPC | 193133256885 |
| Weight (kg) | 0.356 |
| Weight (lb) | 0.78484 |
OEM Cross References
| Brand | Reference No |
|---|---|
| EVOBUS | A0054290344 |
| MERCEDES-BENZ | 0054290344 |
| MERCEDES-BENZ | A0054290344 |
