Description

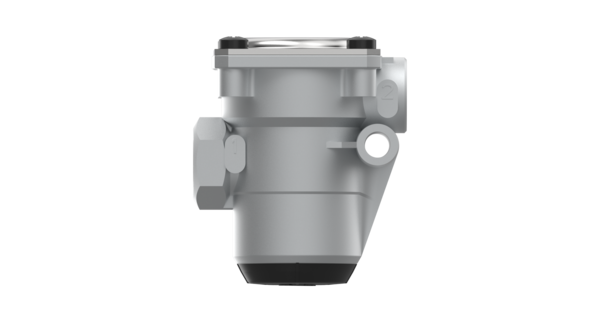

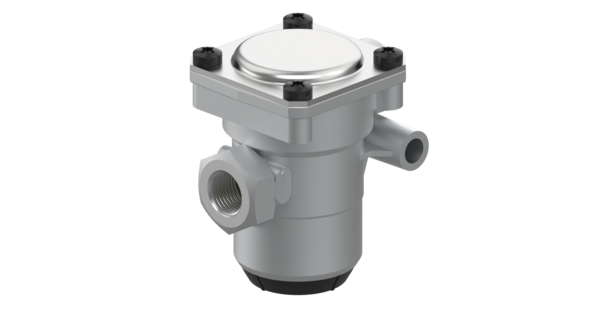

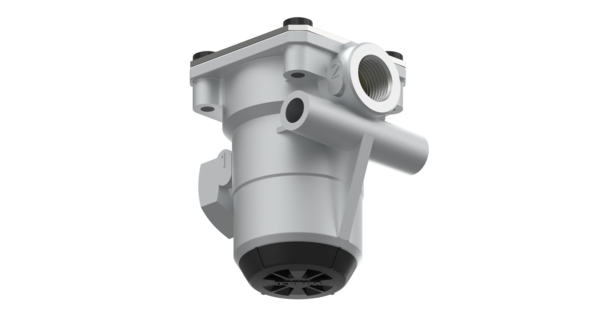

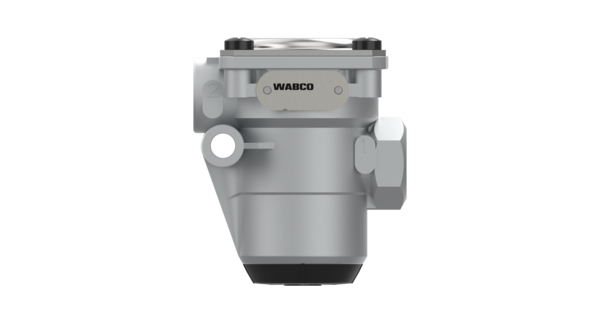

Pressure Limiting Valve
Part Number: 4750151010
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 0.33325 |
| Cooling | Air |
| Delivered pressure | 7.4 at p1 = 10.0 bar |
| Max. operating pressure | 14.0 bar |
| Mounting | 1x Ø 8.2 mm |
| Opening pressure | 10.4 bar |
| Port thread 1 | M16 x 1.5 |
| Port thread 2 | M16 x 1.5 |
| Port threads | M16 x 1.5 |
| Product category | Device |
| Technical specification | OE specification |
| Temperature range | -25°C to +110°C |
| Total length | 84.0 mm |
| GTIN | 04057875223139 |
| Size (mm x mm x mm) | 55 x 73 x 83 |
| UPC | 193133257509 |
| Weight (kg) | 0.371 |
| Weight (lb) | 0.81791 |
OEM Cross References
| Brand | Reference No |
|---|---|
| DAF | 1821568 |
