Description

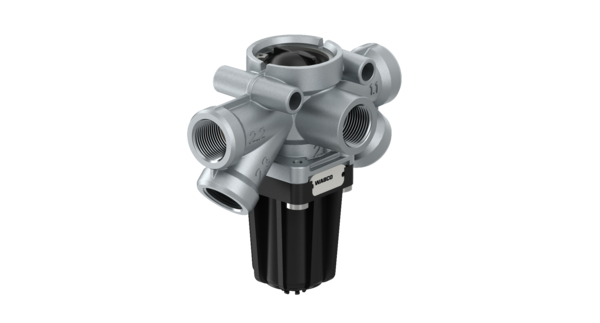

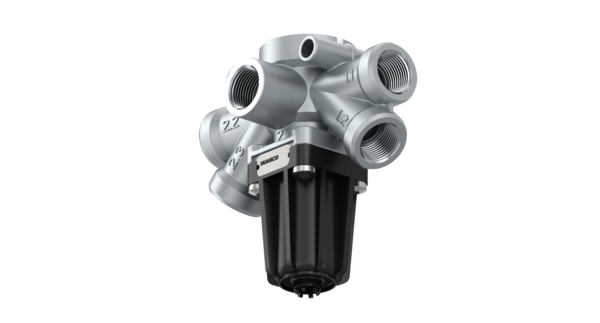

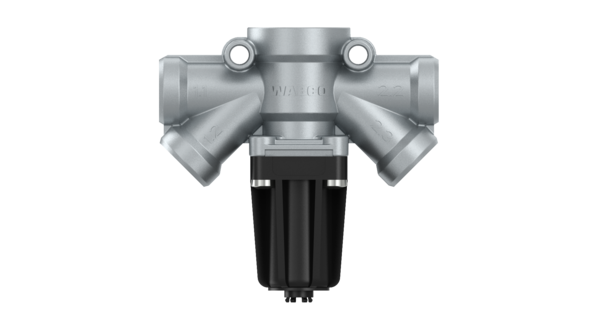

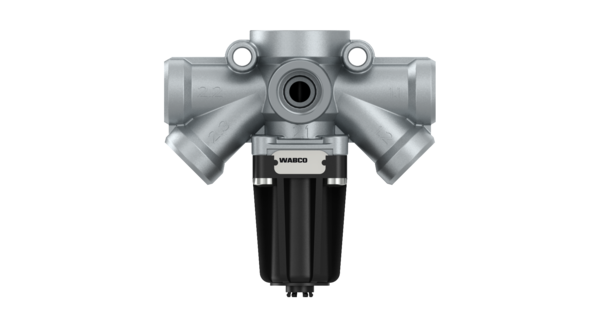

Pressure Limiting Valve
Part Number: 4750104000
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 0.935 |
| Delivered pressure | 8.0 at p1 = 9.8 bar |
| Distance between bolts | 56 mm |
| Exhaust | Ø 4 mm |
| Max. operating pressure | 20.0 bar |
| Mounting | 2x Ø 8.6 mm |
| Port thread 1 | M22 x 1.5 |
| Port thread 2 | M22 x 1.5 |
| Product category | Device |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| GTIN | 04057875222682 |
| Size (mm x mm x mm) | 170 x 50 x 110 |
| UPC | 193133259107 |
| Weight (kg) | 0.544 |
| Weight (lb) | 1.1993 |
OEM Cross References
| Brand | Reference No |
|---|---|
| DAF | 1305138 |
| DAF | 1506193 |
| LEYLAND DAF | 1305138 |
| MAN | 81521016286 |
| MAN | ZG046230002 |
| PACCAR | CD4750104000 |
| SCANIA | 1935020 |
