Description

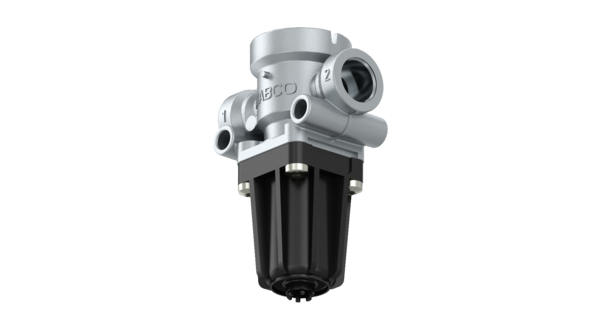

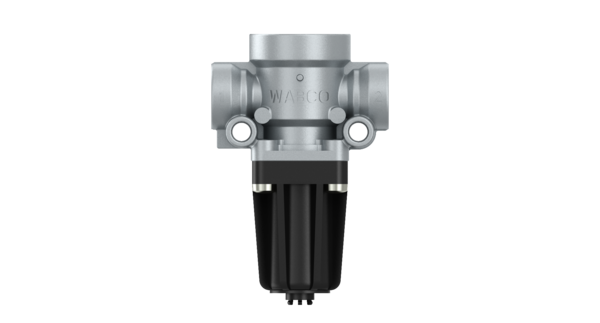

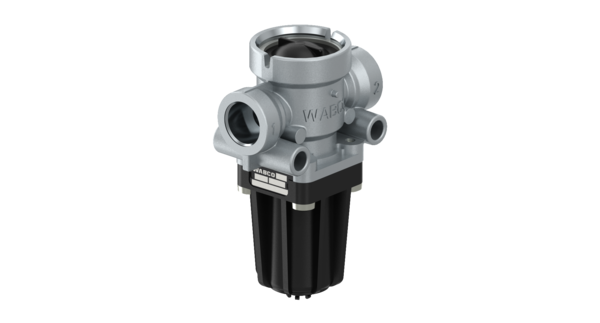

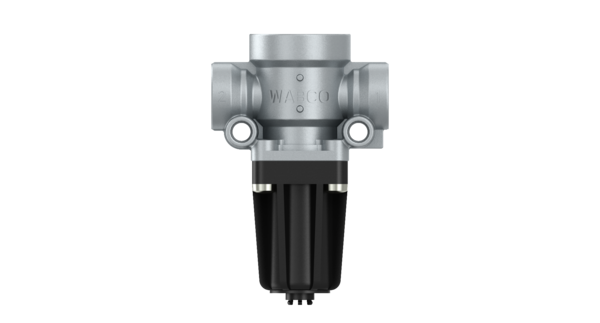

Pressure Limiting Valve
Part Number: 4750103060
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 0.66385 |
| Comments | Nominal diameter of exhaust ø 4 |
| Delivered pressure | 5.0 at p1 = 9.5 bar |
| Distance between bolts | 56 mm |
| Exhaust | Ø 4 mm |
| Max. operating pressure | 20.0 bar |
| Mounting | 2x Ø 8.6 mm |
| Port thread 1 | M22 x 1.5 |
| Port thread 2 | M22 x 1.5 |
| Port threads | M22 x 1.5 |
| Product category | Device |
| Range of adjustment | 1.2 to 6.2 bar |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| GTIN | 04057875222453 |
| Size (mm x mm x mm) | 142 x 85 x 55 |
| UPC | 193133256618 |
| Weight (kg) | 0.362 |
| Weight (lb) | 0.79807 |
OEM Cross References
| Brand | Reference No |
|---|---|
| FAUN | 99707006463 |
| FRUEHAUF | 3766-016 |
| NIPPON TREX | 910015-00067 |
| OTOKAR | 9900040767 |
| SCANIA | 2090275 |
