Description

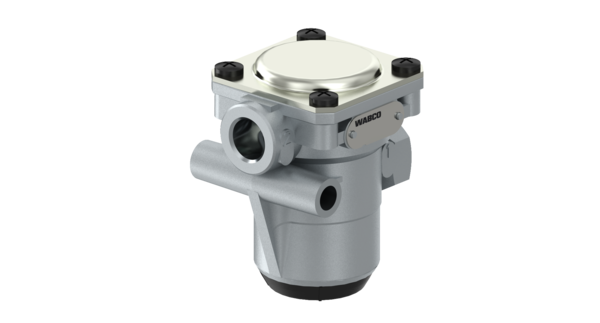

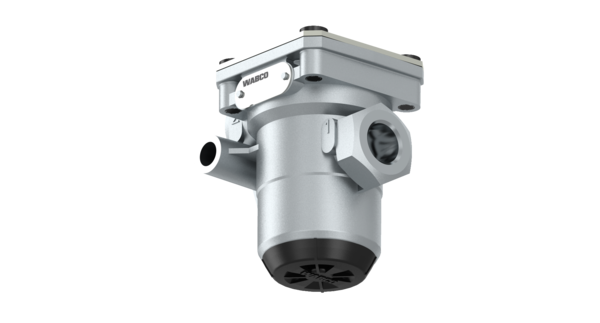

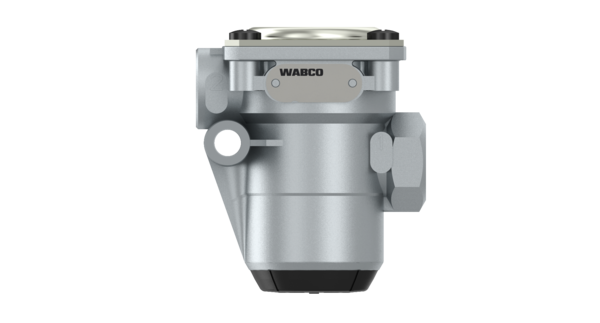

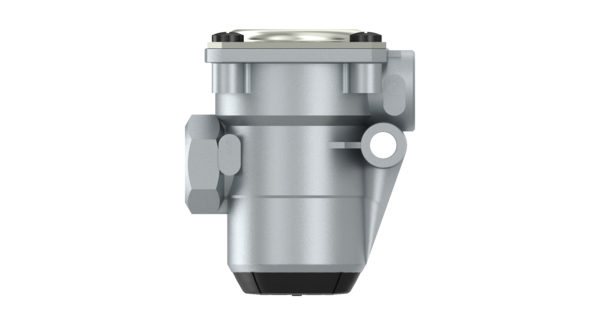

Pressure Limiting Valve
Part Number: 4750150090
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 0.368 |
| Comments | p1 max.=20 bar (if constant) |
| Delivered pressure | 5.3 at p1 = 8.0 bar |
| Max. operating pressure | 8.0 bar |
| Mounting | 1x Ø 8.2 mm |
| Opening pressure | 7.6 bar |
| Port thread 1 | M16 x 1.5 |
| Port threads | M16 x 1.5 |
| Product category | Device |
| Range of adjustment | 4.0 to 8.0 bar |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| GTIN | 04057875222712 |
| Size (mm x mm x mm) | 84 x 73 x 60 |
| UPC | 193133257035 |
| Weight (kg) | 0.36 |
| Weight (lb) | 0.79366 |
OEM Cross References
| Brand | Reference No |
|---|---|
| MERCEDES-BENZ | 0024312206 |
| SCANIA | 2090283 |
| VAN HOOL | 637208170 |
| VDL | 28210201900 |
| VOLVO | 8151935 |
