Description

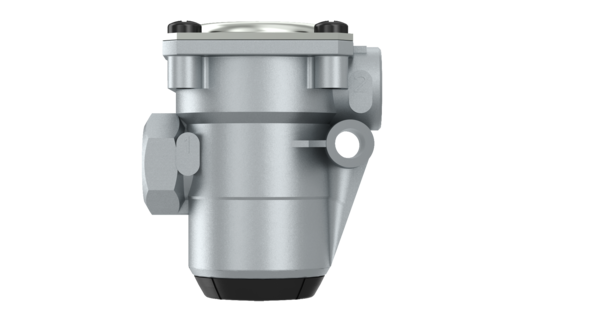

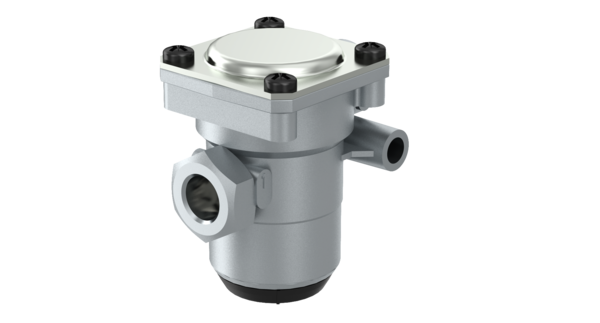

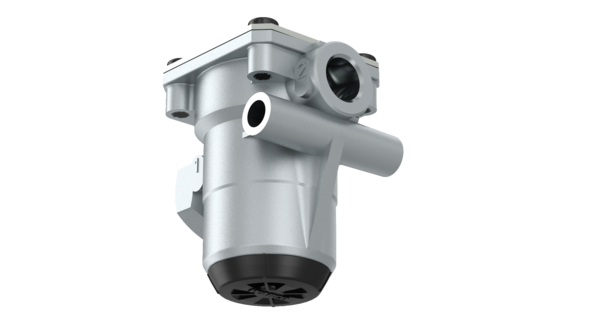

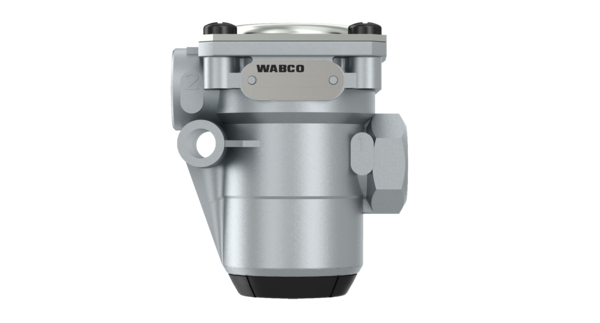

Pressure Limiting Valve
Part Number: 4750150360
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 0.341 |
| Comments | p1 max.=20 bar (if constant) |
| Delivered pressure | 6.7 at p1 = 11.0 bar |
| Max. operating pressure | 14.0 bar |
| Mounting | 1x Ø 8.2 mm |
| Opening pressure | 9.2 bar |
| Port thread 1 | M16 x 1.5 |
| Port thread 2 | M16 x 1.5 |
| Port threads | M16 x 1.5 |
| Product category | Device |
| Range of adjustment | 4.0 to 8.0 bar |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| GTIN | 7895851063341 |
| Size (mm x mm x mm) | 72 x 57 x 83 |
| UPC | 193133257325 |
| Weight (kg) | 0.364 |
| Weight (lb) | 0.80248 |
OEM Cross References
| Brand | Reference No |
|---|---|
| DAF | 1518118 |
| IRISBUS | 98434798 |
| IVECO | 98434798 |
| IVECO | 98439748 |
| PACCAR | 1518118 |
| VOLVO | 21410698 |
