HomeShopTrailerAir Brake SystemsPressure Limiting Valve
Pressure Limiting Valve - 4750103310
Pressure Limiting Valve - 4750103310
Pressure Limiting Valve - 4750103310
Pressure Limiting Valve - 4750103310
Pressure Limiting Valve - 4750103310

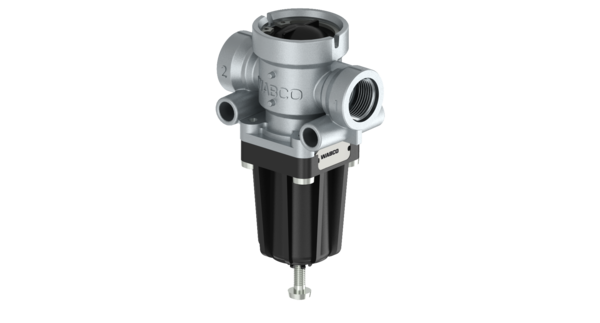

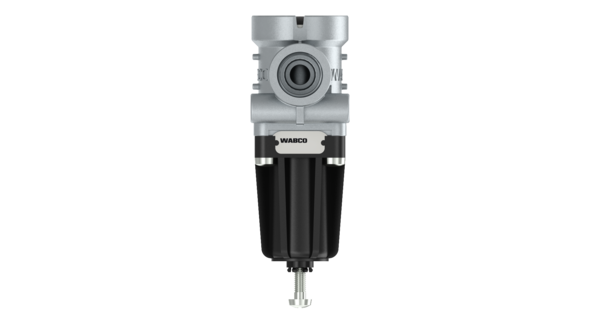

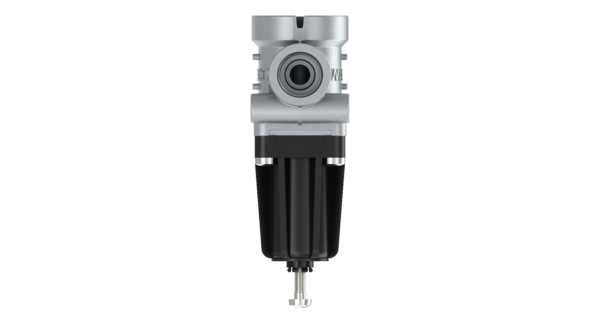

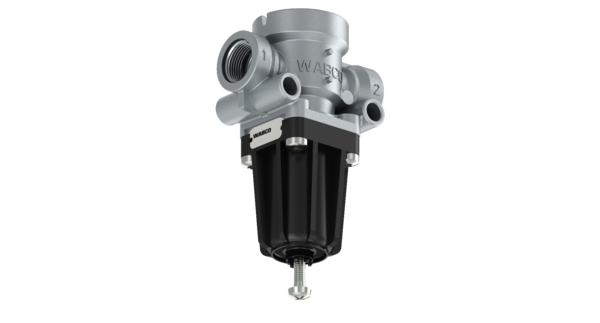

Pressure Limiting Valve

€79,20

Pressure Limiting Valve – WABCO Original – Part No: 4750103310

Ask about this product
SKU: 4750103310 Category:Air Brake Systems Tags:Original Spare PartWABCO Brand: WABCO
  • Description
  • Additional information

Description

Pressure Limiting Valve

Part Number: 4750103310

Technical Specifications

Brand WABCO
Part type Premium original quality
Calculated Volume (dm³) 0.59345
Delivered pressure 8.0 at p1 = 12.0 bar
Distance between bolts 56 mm
Exhaust Ø 4 mm
Max. operating pressure 20.0 bar
Mounting 2x Ø 8.6 mm
Port thread 1 M22 x 1.5
Port thread 2 M22 x 1.5
Product category Device
Technical specification OE specification
Temperature range -40°C to +80°C
GTIN 04057875222576
Size (mm x mm x mm) 130 x 83 x 55
UPC 193133256175
Weight (kg) 0.355
Weight (lb) 0.78264

OEM Cross References

Brand Reference No
ALEXANDER DENNIS AB0044299644
EVOBUS A0044299644
MERCEDES-BENZ 0044299644
MERCEDES-BENZ A0044299644

Additional information

Weight 0,355 kg
Dimensions 130 × 83 × 55 cm
Brand

WABCO

Part type

Premium original quality

Calculated Volume (dm³)

0.59345

Delivered pressure

8.0 at p1 = 12.0 bar

Distance between bolts

56 mm

Exhaust

Ø 4 mm

Max. operating pressure

20.0 bar

Mounting

2x Ø 8.6 mm

Port thread 1

M22 x 1.5

Port thread 2

M22 x 1.5

Product category

Device

Technical specification

OE specification

Temperature range

-40°C to +80°C

Size (mm x mm x mm)

130 x 83 x 55

UPC

193133256175

Weight (kg)

0.355

Weight (lb)

0.78264

GTIN

04057875222576

OEM References

ALEXANDER DENNIS: AB0044299644, EVOBUS: A0044299644, MERCEDES-BENZ: 0044299644, MERCEDES-BENZ: A0044299644
