Description

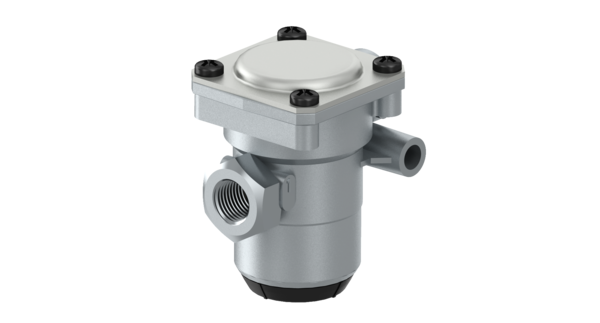

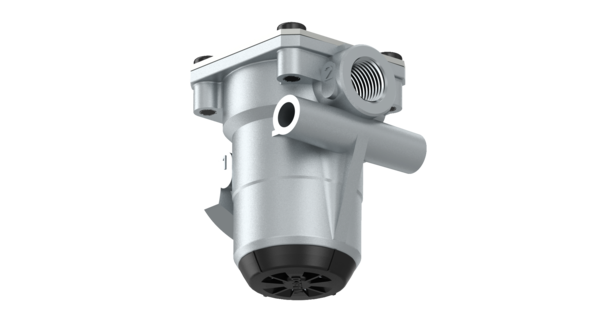

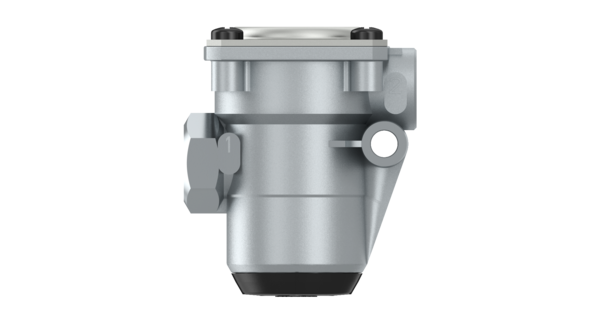

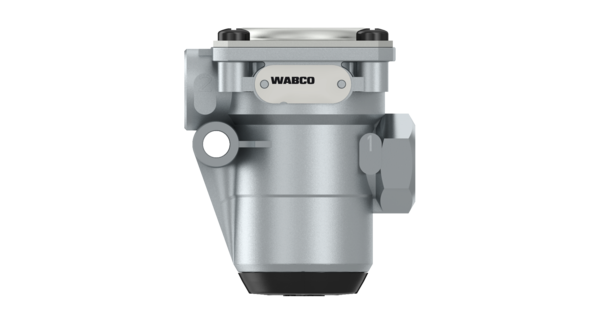

Pressure Limiting Valve
Part Number: 4750150820
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 0.35989 |
| Delivered pressure | 7.3 at p1 = 8.0 bar |
| Max. operating pressure | 15.0 bar |
| Mounting | 1x Ø 8.2 mm |
| Opening pressure | 9.8 bar |
| Port thread 1 | M16 x 1.5 |
| Port thread 2 | M16 x 1.5 |
| Product category | Device |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| GTIN | 04057875223078 |
| Size (mm x mm x mm) | 85 x 58 x 73 |
| UPC | 193133258216 |
| Weight (kg) | 0.368 |
| Weight (lb) | 0.8113 |
OEM Cross References
| Brand | Reference No |
|---|---|
| SCANIA | 2247022 |
