Description

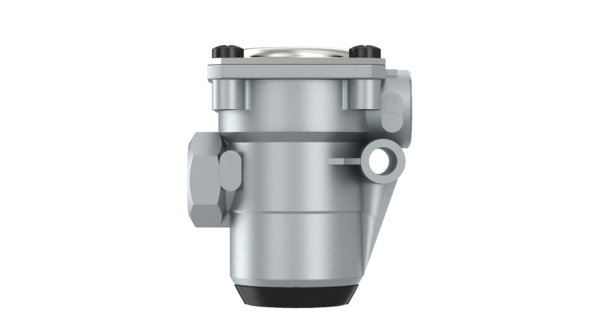

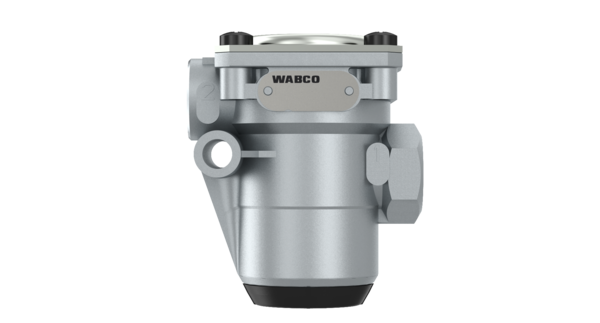

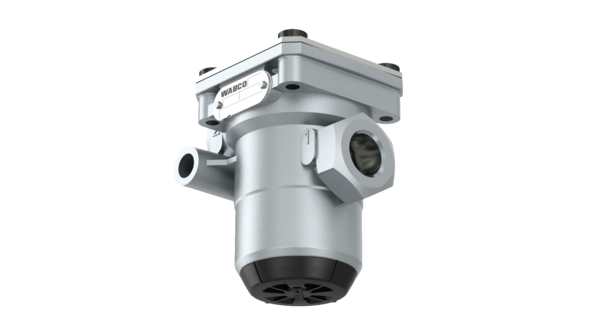

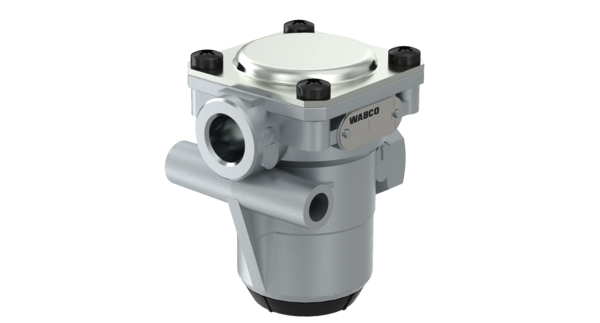

Pressure Limiting Valve
Part Number: 4750150670
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 0.288 |
| Cooling | Air |
| Delivered pressure | 0.8 at p1 = 8.0 bar |
| Max. operating pressure | 20.0 bar |
| Mounting | 1x Ø 8.2 mm |
| Opening pressure | 2.3 bar |
| Port thread 1 | M16 x 1.5 |
| Port thread 2 | M16 x 1.5 |
| Port threads | M16 x 1.5 |
| Product category | Device |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| Total length | 84.0 mm |
| GTIN | 7895851052734 |
| Size (mm x mm x mm) | 60 x 80 x 60 |
| UPC | 193133483007 |
| Weight (kg) | 0.35 |
| Weight (lb) | 0.77162 |
OEM Cross References
| Brand | Reference No |
|---|---|
| SCANIA | 1475652 |
| SCANIA | 1738630 |
