Description

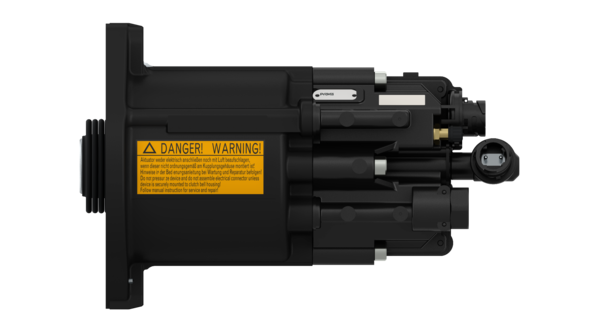

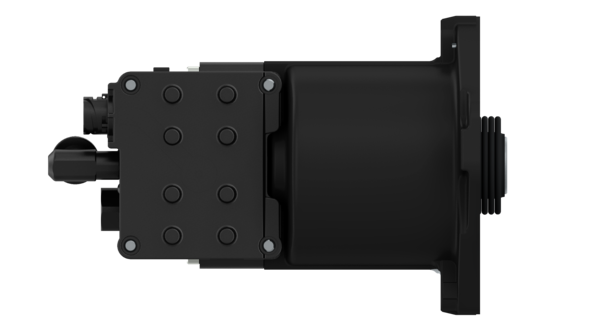

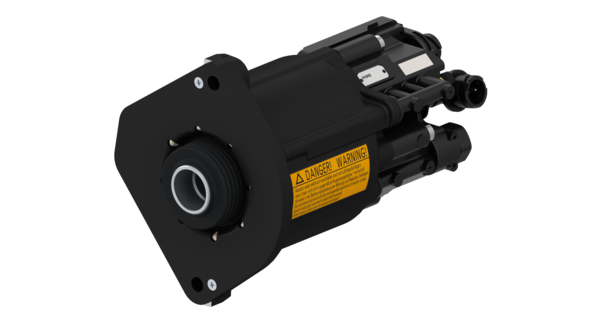

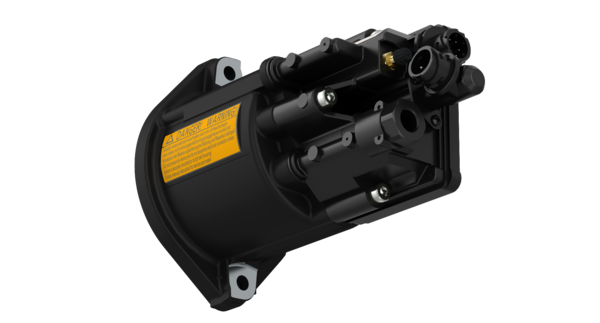

Pneumatic Clutch Actuator
Part Number: PRO4110060
Technical Specifications
| Brand | ProVia |
| Part type | Reliable spare parts |
| Calculated Volume (dm³) | 12 |
| Distance between holes | 44×150 mm |
| Electrical connection | Bayonet DIN 72585 A1-7.1 & Bayonet DIN 72585 A1-2.1 |
| Max. operating pressure | 8.5 bar |
| Mounting | 2 x Ø 11 mm |
| Output force | 7000 N |
| Port thread 1 | M16 x 1.5 |
| Product category | Device |
| Protection class | IP 67 |
| Rated current connector | 1.5 A |
| Rated current sensor (A) | 0.09 A |
| Rated current solenoid valve (A) | 1.60 A |
| Stroke | 69.5 mm |
| System | EPS III |
| Technical specification | AM specification |
| Temperature range | -30°C to +90°C |
| Voltage | 12/24 V |
| GTIN | 04057877025526 |
| Size (mm x mm x mm) | 300 x 200 x 200 |
| UPC | 193134007905 |
| Weight (kg) | 3.85 |
| Weight (lb) | 8.488 |
OEM Cross References
| Brand | Reference No |
|---|---|
| MERCEDES-BENZ | A0002501562 |
| MERCEDES-BENZ | A0002500562 |
