Description

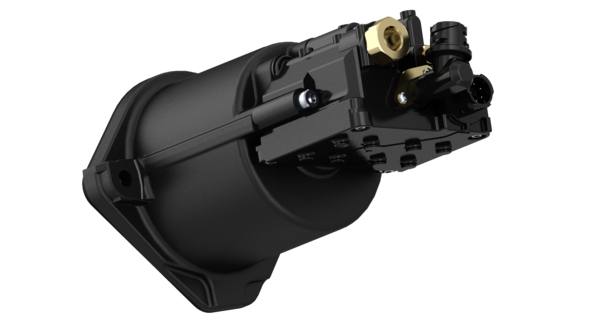

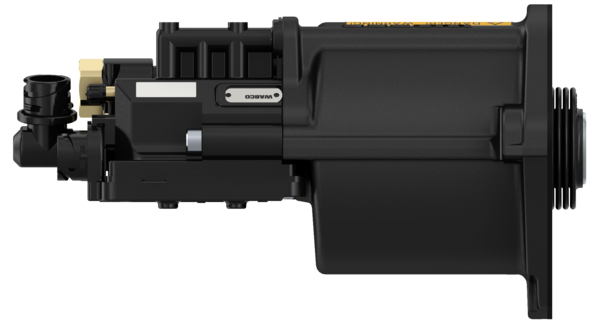

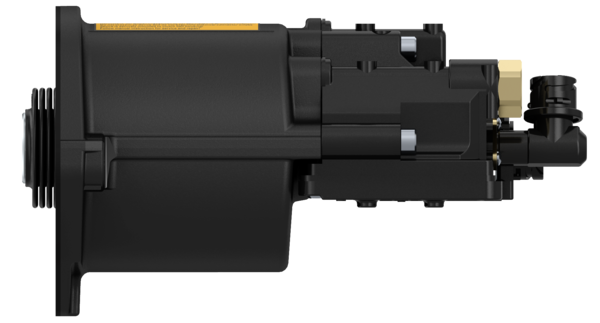

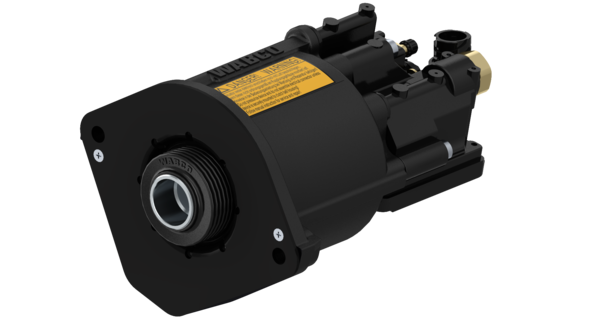

Pneumatic Clutch Actuator
Part Number: 9701500010
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 7.9168 |
| Distance between holes | 44×150 mm |
| Electrical connection | Bayonet DIN 72585 A1-7.1 & Bayonet DIN 72585 A1-2.1 |
| Important information | Please follow the installation instructions of the vehicle manufacturer |
| Max. operating pressure | 8.5 bar |
| Mounting | 2x Ø 11 mm |
| Output force | 7000 N |
| Port thread 1 | M16 x 1.5 |
| Product category | Device |
| Protection class | IP 67 |
| Rated current connector | 1.5 A |
| Rated current sensor (A) | 0.09 A |
| Rated current solenoid valve (A) | 1.60 A |
| Stroke | 69.5 mm |
| System | EPS III |
| Technical specification | OE specification |
| Temperature range | -30°C to +90°C |
| Voltage | 12/24 V |
| GTIN | 7895851078963 |
| Size (mm x mm x mm) | 357 x 154 x 144 |
| UPC | 193133374466 |
| Weight (kg) | 3.969 |
| Weight (lb) | 8.7501 |
OEM Cross References
| Brand | Reference No |
|---|---|
| EVOBUS | A0002500562 |
| MERCEDES-BENZ | 0002500562 |
| MERCEDES-BENZ | A0002500562Z001 |
| MERCEDES-BENZ | A0002500562 |
| MERCEDES-BENZ | 0002500562Z001 |
| MERCEDES-BENZ | 0002500062 |
| MERCEDES-BENZ | 0002500062Z003 |
| MERCEDES-BENZ | A0002500062 |
| MERCEDES-BENZ | A0002500062Z002 |
| MERCEDES-BENZ | A0002500062Z003 |
| MERCEDES-BENZ | A0002500562Z002 |
| MERCEDES-BENZ | 0002500562Z002 |
| PACCAR | 1527642 |
