Description

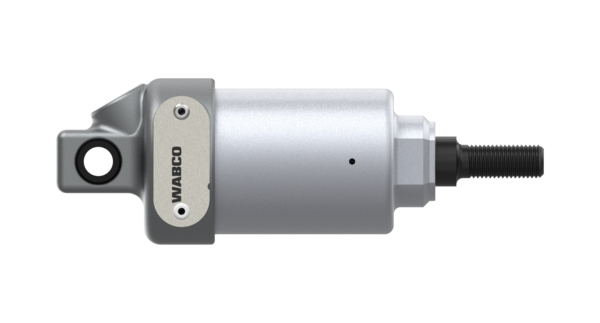

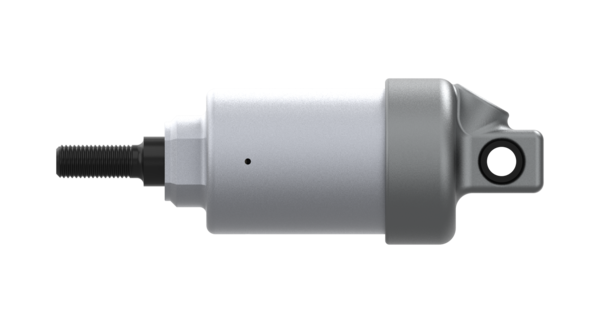

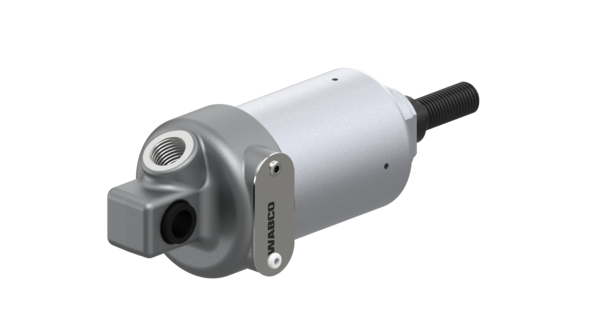

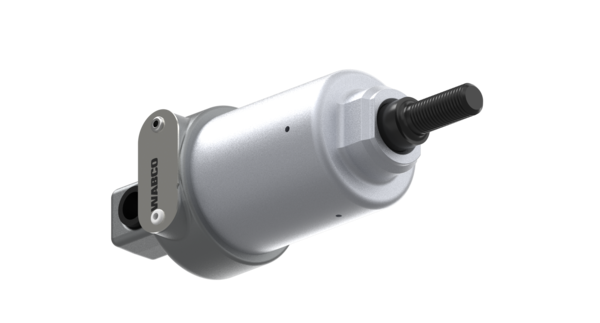

Piston Operating Cylinder
Part Number: 4214100340
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 0.186 |
| Diameter | 35.0 mm |
| Inlet port | M10x1 |
| Length | 107 mm |
| Max. operating pressure | 8.0 bar |
| Mounting | Ø 7 mm |
| Piston diameter | 30.0 mm |
| Piston force | 300 N |
| Port thread 1 | M10 x 1 |
| Product category | Device |
| Push-rod thread | M8 |
| Return-spring force | 97 N |
| Stroke | 25.0 mm |
| Technical specification | OE specification |
| Temperature range | -20°C to +80°C |
| Total length | 117.0 mm |
| Type | Single-acting Cylinder |
| Wrench size | 19.0 mm |
| GTIN | 04057875159865 |
| Size (mm x mm x mm) | 116 x 40 x 40 |
| UPC | 193133242611 |
| Weight (kg) | 0.198 |
| Weight (lb) | 0.43651 |
