Description

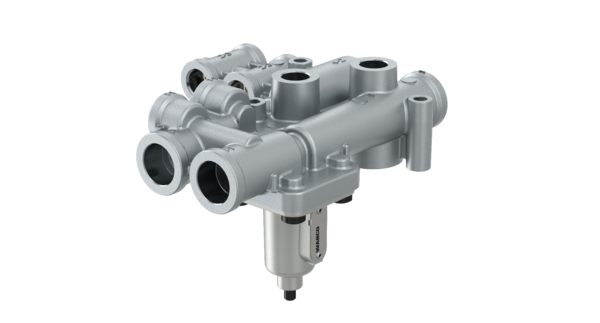

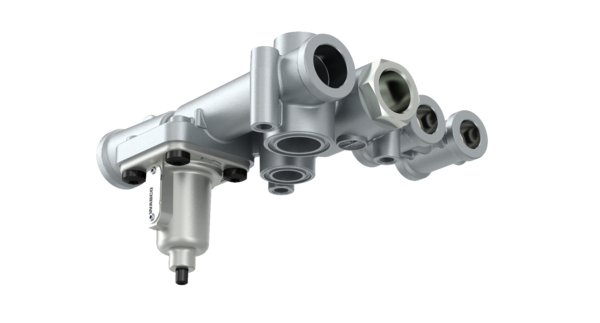

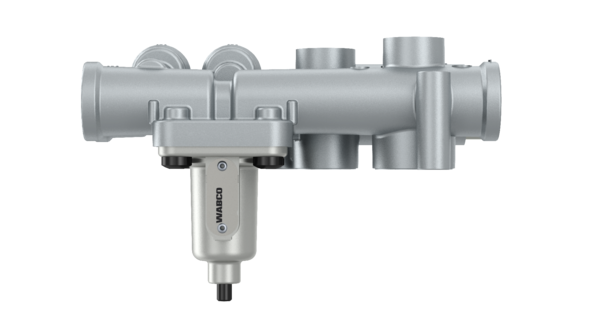

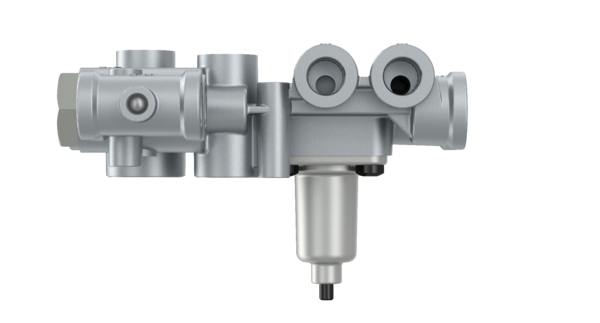

PEM (Pneumatic Extension Module)
Part Number: 4615130020
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Body material | Aluminium |
| Calculated Volume (dm³) | 2.6015 |
| Charging pressure | 6.2 bar |
| Comments | Without fittings |
| Important information | Please buy Kit 4615139202 for proper installation. |
| Length | 163 mm |
| Max. operating pressure | 9.5 bar |
| Port thread 1 | M22 x 1.5 / M16 x 1.5 |
| Port thread 1-1 | 2x M16 x 1.5 / 2x M22 x 1.5 |
| Port thread 2-3 | 4x M16 x 1.5 |
| Port thread 2-4 | M16 x 1.5 |
| Port thread 4-2 | M22 x 1.5 |
| Product category | Device |
| Technical specification | OE specification |
| Temperature range | -40°C to +65°C |
| GTIN | 04057875211730 |
| Size (mm x mm x mm) | 163 x 152 x 105 |
| UPC | 193133305545 |
| Weight (kg) | 0.75 |
| Weight (lb) | 1.653 |
OEM Cross References
| Brand | Reference No |
|---|---|
| NOOTEBOOM | 3413352 |
| SCHMITZ CARGOBULL | 1071668 |
