Description

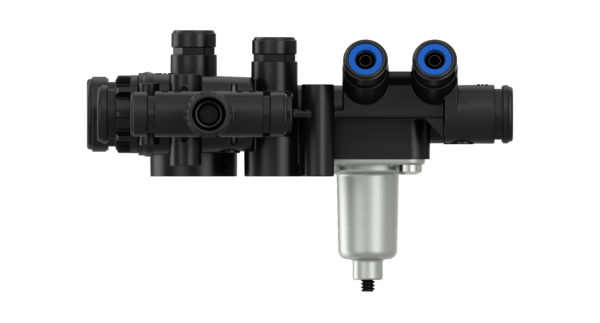

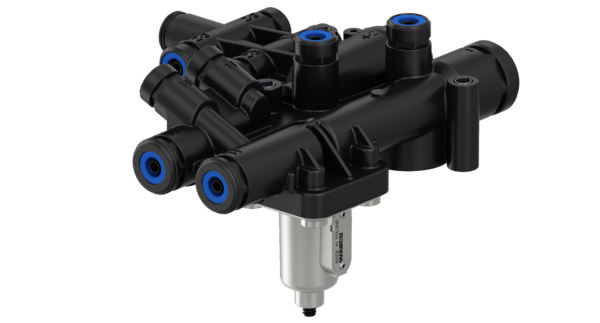

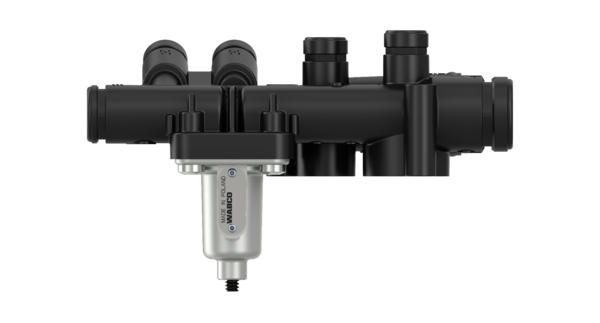

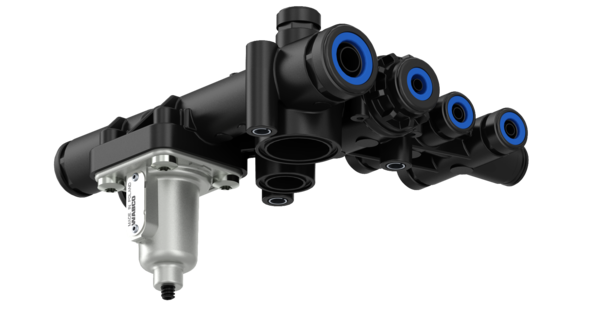

PEM (Pneumatic Extension Module)
Part Number: 4615130210
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Body material | Plastic |
| Calculated Volume (dm³) | 3.496 |
| Charging pressure | 6.2 bar |
| Important information | Please buy Kit 4615139202 for proper installation. |
| Length | 195 mm |
| Max. operating pressure | 9.5 bar |
| Port thread 1 | M22 x 1.5 Fitting 893 000 029 0 (Ø 16 x 2) / M16 x 1.5 Fitting 893 000 025 0 ( Ø 8 x 1) |
| Port thread 1-1 | M16 x 1.5 Fitting 893 000 025 0 (2x Ø 8 x 1) / M22 x 1.5 Fitting 893 000 026 0 (2x Ø 8 x 1.5) |
| Port thread 2-3 | M16 x 1.5 Fitting 893 000 025 0 (4x Ø 8 x 1) |
| Port thread 2-4 | M16 x 1.5 Fitting 893 000 025 0 (Ø 8 x 1) |
| Port thread 4-2 | M22 x 1.5 Fitting 893 000 026 0 (Ø 8 x 1) |
| Product category | Device |
| Technical specification | OE specification |
| Temperature range | -40°C to +65°C |
| GTIN | 04057875211778 |
| Size (mm x mm x mm) | 185 x 166.5 x 113.5 |
| UPC | 193133305569 |
| Weight (kg) | 0.57 |
| Weight (lb) | 1.26 |
